Продукт
Escha
8061633
10I/OM8-3P2T
Сделать запрос
Авторское право на изображение: Escha

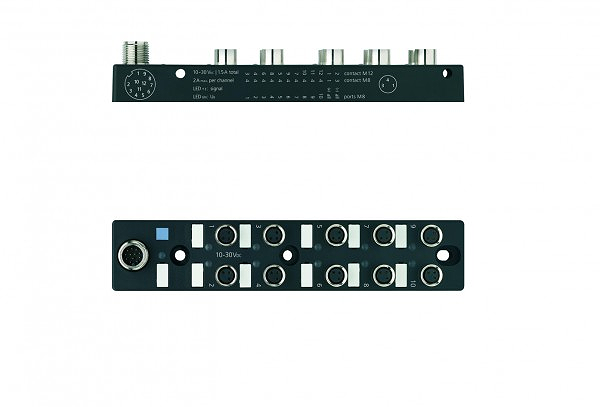

Escha 8061633
10I/OM8-3P2T
I/O-junctions, M8, passive, 10 ports, 3 poles, top contact, M12 male, 12 poles
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Загрузки
Технические характеристики
| I/O-junction: | 10-way, with connecting plug, M12 |
| I/O-slot: | M12x1, 12 poles |
| Number of I/O-slots: | 10 |
| Number of LEDs: | 11 |
| Circuit logic: | pnp |
| Signal status-indicator: | LED YE |
| Total current load: | 1.5 |
| Number of pins: | 3 |
| Rated voltage: | 30V |
| Resistance (mΩ): | 5 |
| Current load (at 40°C): | 2 |
| Insulation resistance (Ω): | ≥10 8 |
| Ambient temperature product: | -30°C...+90°C |
| Housing material: | Plastic, PA, BK |
| Contact material: | Metal, CuZn, gold-plated |
| Contact-carrier material: | Plastic, PA, BK |
| Connecting type: | Top |
| Standards: | IEC 61076-2-104 |
| Degree of protection (mounted): | IP65, IP67 |
| Mechanical life-cycle: | >100 mating cycles |
| Sealing material, connecting-plug: | Plastic, FPM/FKM |
| Contact material, connecting-plug: | Metal, CuZn, gold-plated |
| Mechanical life-cycle, connecting-plug: | >100 mating cycles |
| Number of pins, connecting-plug: | 12 |
| Degree of protection, connecting-plug (mounted): | IP65, IP67 |
| Degree of pollution: | 3 |
| Verschmutzungsgrad: | 3 |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | Deutschland |
| EAN: | |
| Вес: | 0,00 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
