Produkt
Di-soric
207787
FSB 50 M G3-B8
Poproś o ofertę
Prawa autorskie do obrazu: Di-soric

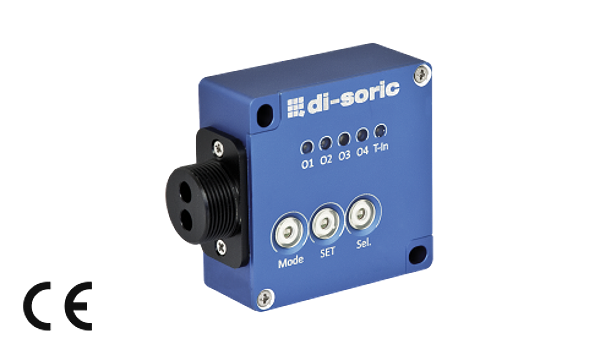

Di-soric 207787
FSB 50 M G3-B8
Colour Sensor
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Extensive range of fibre optic cables. 4 channel, teach-in for many standard applications. Short response time. Adjustable colour tolerance. Distinction of smallest shades. High ambient light compensation. Integrated long-term stability. Status indication via LEDs. Key lock function
Pliki do pobrania
Parametry techniczne
| Service voltage: | 18 ... 28 V DC |
| No-load current: | 500 mA |
| Control elements: | 3 |
| Light spot size: | Dependent on focus optic |
| Emitting light source: | white light LED |
| Operating distance: | Dependent on fiber-optic cable |
| Fiber-optic connection: | M18 x 1 |
| Colour memory internal: | 4 |
| Number of sensing channels: | 1 |
| Colour channels of sensor: | 4 (Teachable via buttons) |
| Colour resolution: | DE Lab < 1 |
| Trigger input: | TRG, 24 V DC |
| Keylock: | Lock (+24 V DC) |
| Switching output: | pnp+npn (4x), < 100 mA |
| Switching hysteresis: | 10 % |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Pulse stretching: | 0 ms or 10 ms, 0 ms or 50 ms (from Serial no. 851238) |
| Display: | 4 LEDs (Output state) 5 LEDs (programming) |
| Voltage drop: | < 2,0 V |
| Response time/Scanning frequency: | 10 ms / 100 Hz or 1 ms / 1000 Hz, parametrizable |
| Ambient temperature, operation: | -10 … +55 °C |
| Tolerance ranges: | 5 by buttons arbitraily |
| Ambient light compensation: | dynamic |
| Protection class: | IP 54 |
| Colour space mode: | L*a*b* (Non-self-shining objects) |
| Detection modes: | Minimum spacing (Assignment of measured colour to the stored colour with the smallest colour spacing) Check sphere (Check whether the measured colour is within a defined tolerance) |
| Operating mode: | - (Continuous) - (External triggering) |
| Casing material: | Aluminium anodized |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | |
| EAN: | |
| Waga: | 0,10 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
