Beckhoff KL9380

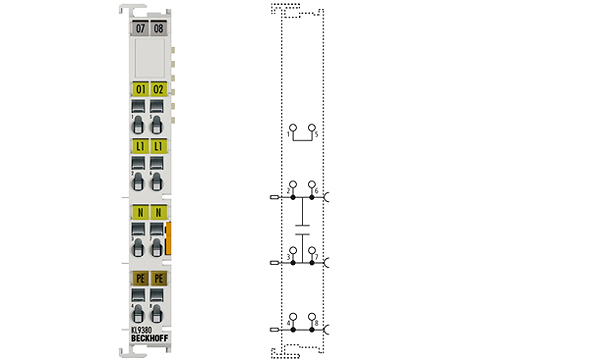

KL9380 | Mains filter terminal for dimmers
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
The KL9380 feed and filter terminal protects downstream Bus Terminals from high-energy and high-frequency interference pulses from the 230 V AC mains supply. The Bus Terminal contains a capacitance for smoothing the mains voltage and is particularly suitable for the operation of dimmer circuits. The KL9380 provides a sufficiently high pulse current for fast switching, which is particularly useful for operating a dimmer in leading edge phase control mode and for switching operations involving loads with capacitive effect that are not mains-synchronous. Thus, interference pulses can be filtered out.
Parámetros técnicos
| Nominal voltage: | arbitrary up to 230 V AC |
| Current load: | ≤ 10 A |
| Capacity: | approx. 1 µF |
| Integrated fine-wire fuse: | – |
| Diagnostics: | – |
| Power LED: | – |
| Defect LED: | – |
| Reported to K-bus: | – |
| PE contact: | yes |
| Shield connection: | – |
| Renewed infeed: | – |
| Connection facility to additional power contact: | 2 |
| K-bus, looped through: | yes |
| Bit width in the process image: | 0 |
| Electrical connection to DIN rail: | – |
| Current consumption K-bus: | – |
| Electrical isolation: | – |
| Housing width: | 12 mm |
| Weight: | approx. 50 g |
| Side by side mounting on Bus Terminals with power contact: | yes |
| Side by side mounting on Bus Terminals without power contact: | – |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Approvals/markings: | CE |
