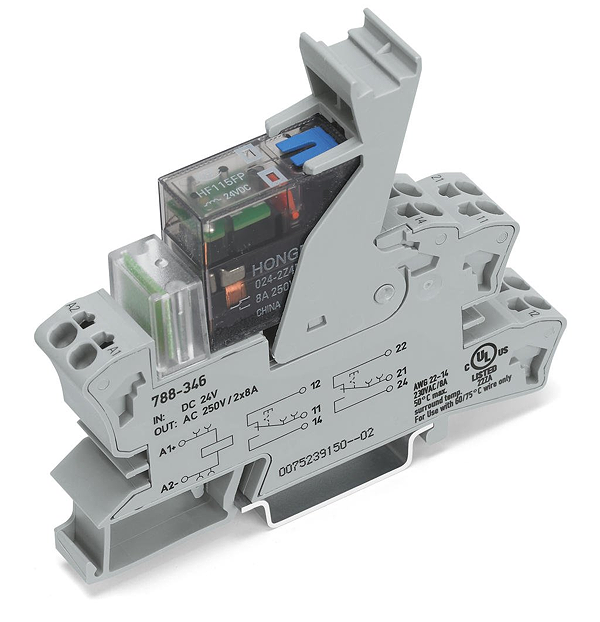

Wago 788-346

Relay module; Nominal input voltage: 24 VDC; 2 changeover contacts; Limiting continuous current: 8 A; with manual operation; Red status indicator; Module width: 15 mm

Описание

Reinforced insulation between coil and contacts. A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements. To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.
