Продукт
Pulsotronic
08310001877
KJ3-Q40AB-DPS
Сделать запрос

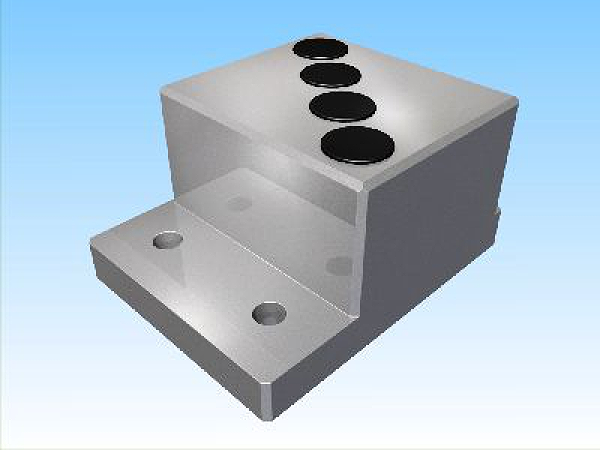

Авторское право на изображение: Pulsotronic
Pulsotronic 08310001877
KJ3-Q40AB-DPS
Inductive sensor DC
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Загрузки
Технические характеристики
| Name: | KJ3-Q40AB-DPS |
| Order number: | 08310001877 |
| Switching distance: | 3 mm |
| Mounting: | shielded |
| Switch type: | N.O. |
| Signal Type: | DC PNP |
| Connection: | Cable |
| Connection diagramm: | |
| Dimension (in mm): | Q 46 x 32 x 60 |
| art_gewicht: | 116 |
| Special features: | indcutive sensor with 4 active heads function with adjusted oscillating frequencies detection of closely targets |
| Operating voltage: | 10 - 30 V DC |
| Max. ripple: | ≤ 10 % |
| Voltage drop: | 2,4 V |
| Max. load current: | 200 mA |
| No load current: | ≤ 10 mA |
| Leakage current: | ≤ 10 µA |
| Switching frequency: | 1500 |
| Switching hysterese: | ≤ 15 % |
| Operating temperature: | -25 ° C to 70 ° C |
| Temperature drift: | ≤ 10 % |
| Repeat accuracy: | ≤ 10 % |
| Time delay: | 300 ms |
| Short-circuit proof: | yes |
| Overload protection: | yes |
| Reverse voltage protection: | yes |
| Protection category: | IP67 |
| EMC-level: | DIN EN 60947-5-2:2008 |
| Housing material: | Aluminum |
| Material active face: | PA 6.6 |
| Cable length: | 2 m |
| Utilisation category: | DC 13 |
| Cable material: | PVC LIY-LIYC-Y grau |
| Nominal operating voltage: | 24 V DC |
| Cable cross: | 6x0.14 mm² |
| FIT / MTTF acc. to SIEMENS 29500: | 255,53 / 447y |
| Errors and omissions exceptet: |
