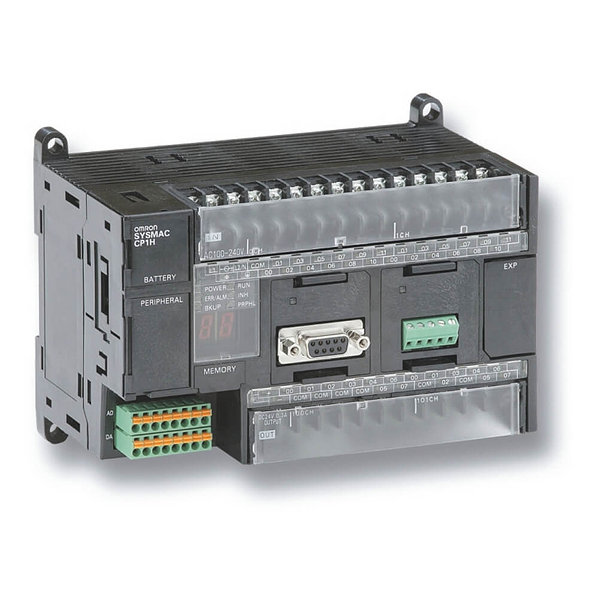

Omron CP1W0004C
CP1H-X40DR-A
Контроллер CP1H, 24 вх., 16 вых. (реле), питание 220VAC
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Технические характеристики
| Supply voltage type: | AC |
| Number of digital inputs: | 24 |
| Input type: | PNP/NPN |
| Number of digital outputs: | 16 |
| Output type: | Relay |
| Program capacity: | 20 K steps |
| Data memory capacity: | 32 K words |
| Logic execution time: | 0.10 µs |
| Communication port(s): | USB |
| Number of Ethernet ports: | 0 |
| Number of USB ports: | 1 |
| Number of RS-232 ports: | 0 |
| Number of RS-485 ports: | 0 |
| Communication option(s): | CAN, CompoBus/S Master, CompoBus/S Slave, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, Ethernet TCP/IP, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485 |
| Number of encoder input channels: | 4 |
| Max. encoder input frequency: | 100 kHz |
| Max. number of PTP axes: | 0 |
| Max. pulse output frequency: | 0 kHz |
| Function Block programming: | |
| Battery-free memory backup: | |
| Real-time clock: | |
| Analog option boards: | |
| Max. number of analog I/O channels: | 56 |
| Max. number of local I/O points: | 320 |
| Max. number of expansion units: | 7 |
| Built-in auxiliary 24 VDC output: | 300 mA |
| Operating temperature range: | 0-55 °C |
| Height: | 90 mm |
| Width: | 150 mm |
| Depth: | 85 mm |
| Product Weight (unpacked): | 750 g |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | CHN |
| EAN: | |
| Вес: | 0,00 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
