Omron
377378
3G3MX2-A4004-P-E

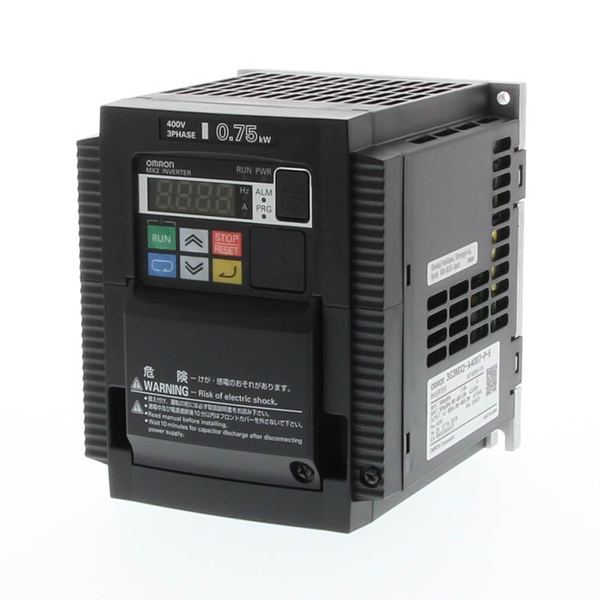

Omron 377378
3G3MX2-A4004-P-E
3G3MX2 inverter drive, 0.4/0.75 kW (HD/ND), 1.8/2.1 A (HD/ND), 400 VAC, 3~, sensorless vector, w/o heatsink, max. output freq. 580Hz
Описание
Frequenzumrichter - 3G3MX2-Serie ohne Kühlkörper, vektorgeregelt sensorlos - Nennspannung: 3 x 380V bis 480V; +10% / -15% - Nennstrom: 2.1 A (VT) / 1.8 A (CT) - empfohlene Motorleistung: 0.55 kW (VT) / 0.4 kW (CT) - maximale Überlast: 150% (CT) / 120% (VT) für 60s - LED-Bedienkonsole - Stopp-Kat. 0 nach EN 60204 - Performance Level PL d, Kat. 3 nach EN ISO 13849-1 - Rückführ-Ausgang (EDM) - integrierter Bremschopper - PID-Regler - ModBus-Schnittstelle on board - diverse Feldbus-Optionen - 7 programmierbare Digitaleingänge - 2 Analogeingänge / 1 Pulseingang - 1 progr. Relaisausgang - 2 progr. Optokoppler-Ausgänge - 2 progr. Analogausgänge - zugehöriges Netzfilter: AX-FIM3005-RE - IP20 - RoHS, CE, cULus
Технические характеристики
| Inverter control method: | Open loop V/f, Open loop vector |
| Drive supply voltage: | 400 V three phase |
| Max. motor output at constant torque (HD): | 0.4 kW |
| Max. motor output at variable torque (ND): | 0.75 kW |
| Built in EMC filter: | |
| Degree of protection (IP): | IP20 |
| Finless type: | |
| Compatible motor type: | Induction or asynchronous motor, Permanent magnet motor |
| Regenerative solutions: | As inverter option |
| Communication port(s): | MODBUS Slave, Serial RS-485, USB |
| Communication option(s): | CompoNet Slave, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, PROFIBUS DP Slave |
| Height: | 128 mm |
| Width: | 108 mm |
| Depth: | 123 mm |
| Product Weight (unpacked): | 1800 g |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | Japan |
| EAN: | 4548583379718 |
| Вес: | 0,00 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
