Leuze electronic
50141857
BCL 338i R1 M 100 D F007
Сделать запрос

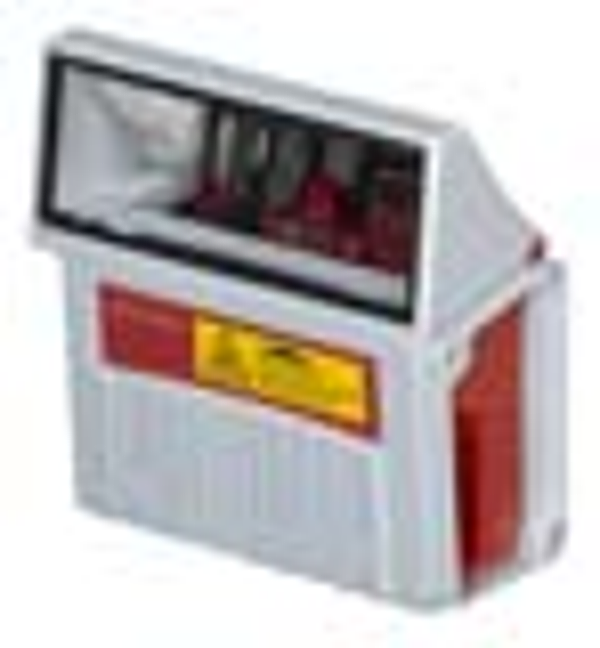

Авторское право на изображение: Leuze electronic
Leuze electronic 50141857
BCL 338i R1 M 100 D F007
BCL 338i R1 M 100 D F007 - Stationary bar code reader
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Технические характеристики
| Series: | BCL 300i |
| Functions: | Code fragment technology, Alignment mode, AutoConfig, AutoControl, AutoReflAct, LED indicator, Reference code comparison |
| Code types, readable: | 2/5 Interleaved, Codabar, Code 128, Code 39, Code 93, EAN 8/13, GS1 Databar Expanded, GS1 Databar Limited, GS1 Databar Omnidirectional, UPC |
| Scanning rate, typical: | 1,000 scans/s |
| Bar codes per reading gate, max. number: | 64 Piece(s) |
| Reading distance: | 30 ... 290 mm |
| Light source: | Laser, Red |
| Laser light wavelength: | 655 nm |
| Laser class: | 2, IEC/EN 60825-1:2007 |
| Modulus size: | 0.2 ... 0.5 mm |
| Reading method: | Raster scanner with deflecting mirror |
| Beam deflection: | By means of rotating polygon mirror wheel + deflecting mirror |
| Light beam exit: | Lateral with deflecting mirror |
| Supply voltage UB: | 18 ... 30 V, DC |
| Power consumption, max.: | 4.5 W |
| Number of inputs/outputs selectable: | 2 Piece(s) |
| Type: | EtherCAT |
| Transmission protocol: | EtherCAT, CoE and EoE |
| Type: | USB |
| Function: | Service, Configuration via software |
| Number of connections: | 1 Piece(s) |
| Function: | Data interface, BUS IN, BUS OUT, Connection to device, PWR / SW IN / OUT, Service interface |
| Type of connection: | Plug connector |
| No. of pins: | 32 -pin |
| Type: | Male |
| Design: | Cubic |
| Dimension (W x H x L): | 103 mm x 44 mm x 96 mm |
| Housing material: | Metal, Diecast aluminum |
| Lens cover material: | Glass |
| Net weight: | 350 g |
| Housing color: | Red, Black |
| Type of fastening: | Dovetail grooves, Fastening on back, Via optional mounting device |
| Type of display: | Monochromatic graphic display, 128 x 32 pixels, LED |
| Number of LEDs: | 2 Piece(s) |
| Type of configuration: | Via web browser |
| Operational controls: | Button(s) |
| Ambient temperature, operation: | 0 ... 40 °C |
| Ambient temperature, storage: | -20 ... 70 °C |
| Relative humidity (non-condensing): | 0 ... 90 % |
| Degree of protection: | IP 65 |
| Protection class: | III |
| Certifications: | c UL US |
| Test procedure for EMC in accordance with standard: | EN 55022, EN 61000-4-2, -3, -4, -6 |
| Test procedure for shock in accordance with standard: | IEC 60068-2-27, test Ea |
| Test procedure for continuous shock in accordance with standard: | IEC 60068-2-29, test Eb |
| Test procedure for vibration in accordance with standard: | IEC 60068-2-6, test Fc |
| Customs tariff number: | 84719000 |
| eCl@ss 8.0: | 27280102 |
| eCl@ss 9.0: | 27280102 |
| ETIM 5.0: | EC002550 |
| ETIM 6.0: | EC002550 |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | Deutschland |
| EAN: | |
| Вес: | 0,42 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
