Продукт
IPF
ZI575453
Сделать запрос
Авторское право на изображение: IPF

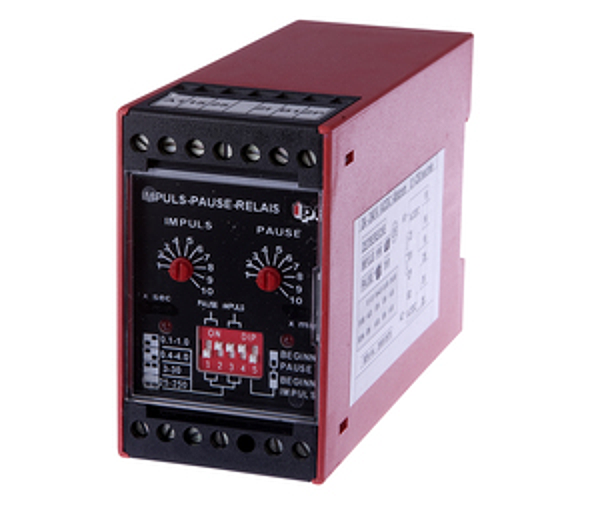

IPF ZI575453
75x110x45mm, 0.1-15000s, 24-250V AC, 24-250V DC, 2x Relay contact Change-over contact, Screw connection 13pin, IP20, Plastic, Potentiometer
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
24-250V AC/DC,Relais,analog
Технические характеристики
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Height: | 75mm |
| Housing material: | Plastic |
| Degree of protection (IP): | IP20 |
| Width: | 45mm |
| Length: | 110mm |
| Ambient temperature: | -25 - 70°C |
| Voltage type: | AC/DC |
| Number of switching outputs: | 2 |
| Switching voltage: | 250V |
| Type of switching function: | Change-over contact |
| Rated control supply voltage Us at DC: | 24 - 250V |
| Setting procedure: | Manual adjustment |
| Relative repeat accuracy: | 1% |
| Number of outputs, undelayed, normally closed contact: | 0 |
| Number of outputs, undelayed, change-over contact: | 0 |
| Number of outputs, delayed, normally open contact: | 0 |
| Voltage type for actuation: | AC/DC |
| Decay time: | 10ms |
| Time adjustable via: | Potentiometer |
| Number of pins: | 13 |
| Time range: | 0.1 - 15000s |
| Type of switching output: | Relay contact |
| Rated control supply voltage Us at AC 50HZ: | 24 - 250V |
| Operating voltage: | 24 - 250V |
| No-load current: | 60mA |
| Rated switching current: | 6000mA |
| Number of outputs, undelayed, normally open contact: | 0 |
| Number of outputs, delayed, normally closed contact: | 0 |
| Number of outputs, delayed, change-over contact: | 2 |
| Readiness delay: | 80ms |
| Number of time ranges: | 4 |
| Type of signal processing: | Time delay relay – pulse/pause |
| Optional setting via external potentiometer: | True |
| eClass 7.0: | 27371790 |
| eClass 7.1: | 27371790 |
| eClass 8.0: | 27371605 |
| eClass 9.0: | 27371605 |
| eClass 9.1: | 27371605 |
| ETIM-6.0: | EC001439 |
| ETIM-7.0: | EC001439 |
| IPF Product Group: | 999 |
| shipping weight: | 0.2kg |
| packaging dimensions: | 76.0mm x 50mm x 121.0mm |
| customs tariff number: | 85364900 |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | |
| EAN: | |
| Вес: | 0,00 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
