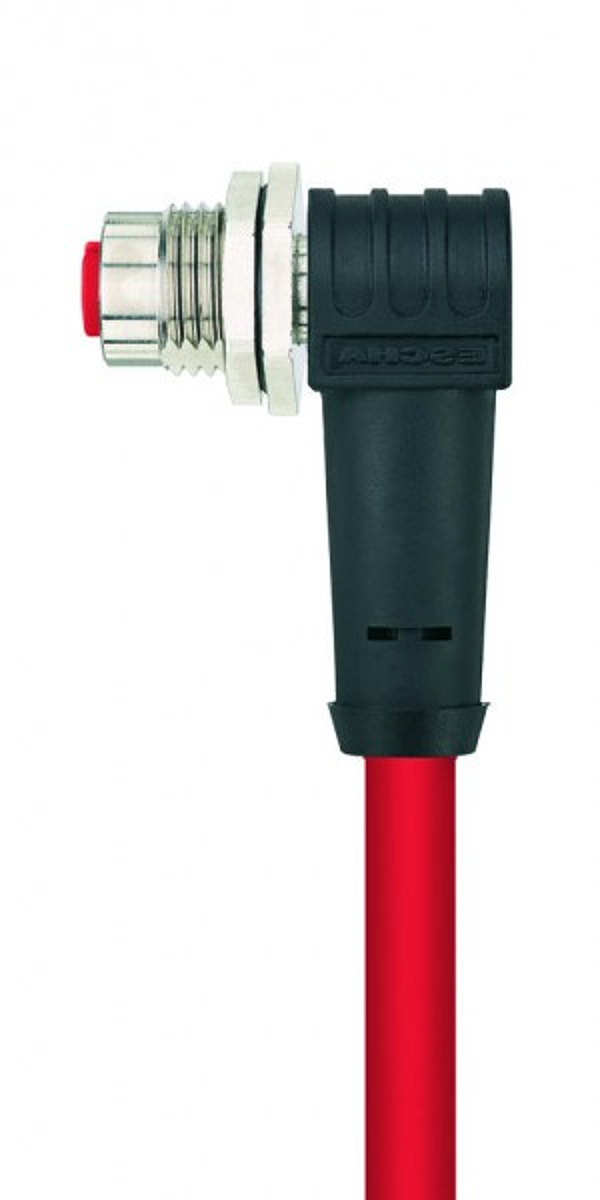

Escha 8063602
IE-WFKFDSY4.029-2/16/S3800/S38
Receptacle single-ended cordset, M12 female, angled, Industrial Ethernet, 4 poles, D-coded, back wall-mounting, shielded
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
Shielded PUR-cable for industrial applications. The cable is CMX-verified or meets the Cat5e (electrical properties of EN 50288-2-1) requirements. Materials and a constructive setup allow for increased mechanical stresses (abrasion, bending, vibrations etc.) of the cable. A drag-chain application with up to 3million bending cycles is possible.
Загрузки
Технические характеристики
| Outer diameter of jacket: | 6,50 mm |
| Transmission features: | Cat5e |
| Jacket color: | RD, similar RAL3020 |
| Wire cross-section: | 1 x 4 x AWG22, star quad |
| Pin assignment: | 1 YE, 2 WH, 3 OG, 4 BU |
| Coding: | D |
| Conductor structure: | 7 x 0.254 mm |
| Bending radius (fixed): | 4 x Ø-cable |
| Temperature range (fixed): | -40°C...+80°C |
| Ambient temperature product: | -30°C...+90°C |
| Halogen-free: | Yes |
| Transmission features: | Cat5e |
| Rated voltage cable: | 300 V UL rating |
| Special features: | flame retardant, seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant, hydrolysis proof, drag chain-adapted, halogen free, oil resistant, high flexibility, microbes resistant |
| Material of external sealing: | NBR |
| Adjustable fixing screw: | Yes |
| Connecting type: | Cable |
| Standards: | IEC 61076-2-101 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mounting direction: | Back wall-mounting (incl. Fixing screw) |
| Mechanical life-cycle: | >100 mating cycles |
| Receptacle housing material, conecting-plug: | Metal, CuZn, nickel-plated |
| Degree of pollution: | 3 |
| Shielding: | with shielding |
| Fire prevention according to: | DIN EN 45545-2 HL1-3 |
| Temperature range: | Tx (-40°C...+90°C) |
| Shock & vibration: | Class 1, Category B (DIN EN 61373) |
| Degree of protection (mounted): | IP67 (-30°C...+90°C), IP65 (-40°C...+90°C) |
| Standards: | DIN EN 50155, DIN EN 45545-2 |
