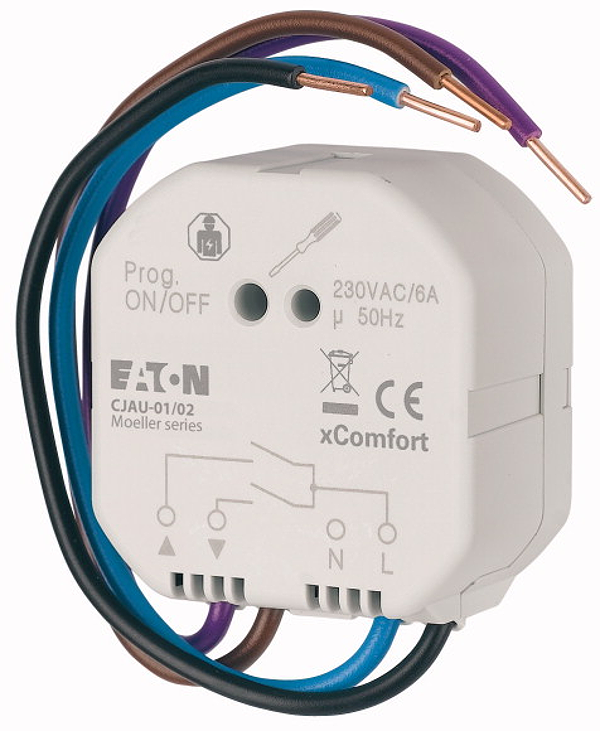

Eaton 240696

CJAU-01/02

Shutters/Blinds actuator

Описание

EL-Nummer (Norway). 0004560565. The blind actuator receives and actuates blinds and blind drives with 230V motors with integrated end position switch. In this blind actuator, 2 safety functions are possible (e.g., safety position during wind and / or rain. Lock-out protection - when the terrace door is open this roller blind / blind must not close). note: several shading motors must not be switched parallel on one blind actuator without having an isolator relay. The supply is carried out via the mains. the device is mounted in the switch or junction box. When using with inductive loads (e.g., fluorescent lamps), observe the suppressor circuit in all cases!
