Eaton 138388

NZM2-4-XAD250

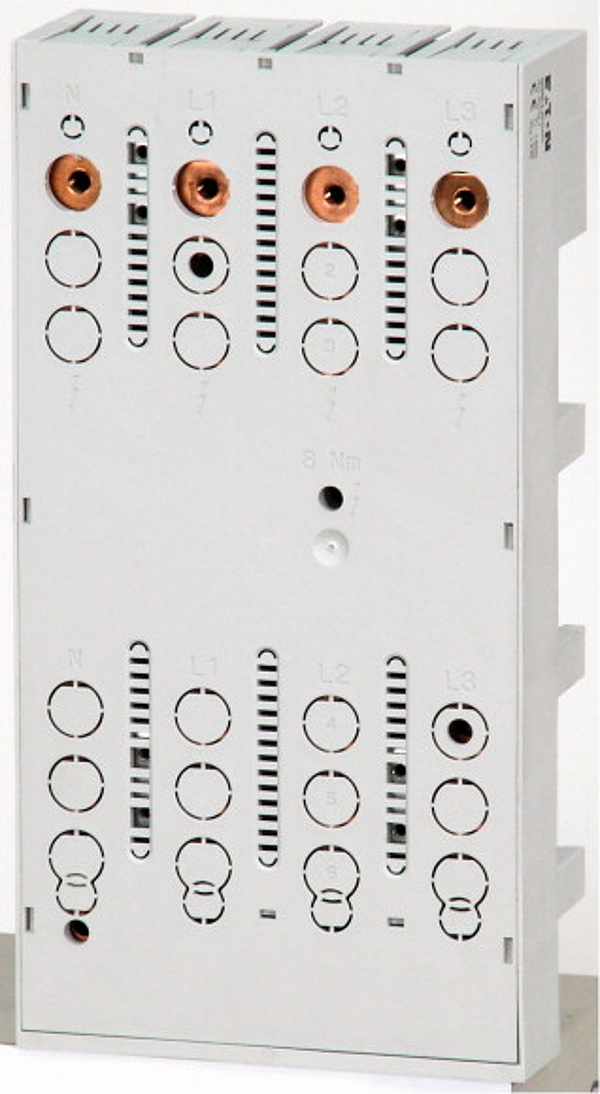

Адаптер магистральной шины, 4-пол., для NZM2, 250A, UL508

Описание

EL-Nummer (Norway). 0001718009. Type-checked busbar adapter for NZM circuit-breaker and N switch-disconnector, for surface mounting on Cu-busbars 12-30x5-10, double t and triple t profile, rated operational current Ie=250A, can be used for NZM2, PN2, N(S)2, NZM2(-4), PN2(-4), N(N/O)2(-4), adapter width=140mm, rated operating voltage Ue=690VAC, screw connection on the busbar 5mm or 10mm thickness, cable connection at bottom, temperature resistant to 120 °C, self-extinguishing to UL 94, track resistance CTI 200, number of poles=4 pole, between busbar centers=60mm, can be used in conjunction with busbar system SASY 60i
