Dold 0062425

GI9014 3AC200-440V UH DC24V 37KW

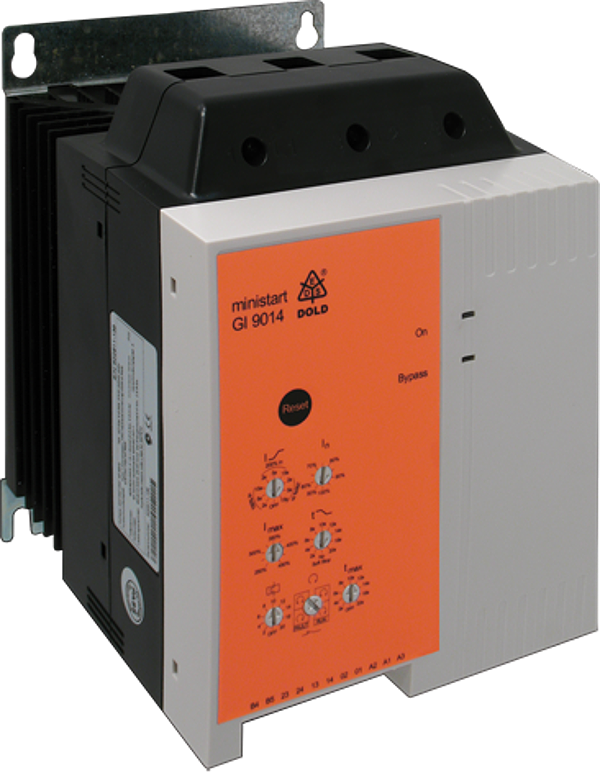

Softstart- / Softstop device GI 9014

Описание

2-phase softstarter for asynchronous motors up to 110 kW (400 V). Integrated current control time. Integrated motor protector. Integrated bridging contactor. Volt free coltrol input for softstart / -stop. Connection for motor thermistor. With two monitoring outputs, one is programmable. DIN rail mounting with devices up to 30 kW. Communication interfaces for Profibus, DeviceNet,. Modbus and pump controls (optional). Start and stop via seperate push buttons or control switch. Motor voltage range 3 AC 200 .. 440V or 3 AC 200 .. 575V. Adjustable functions:. Starting time monitoring. Nominal motor current. Current ramp. Current limit. Softstopp - ramp time. Motor protection class. Phase sequence. Programmable relay output for indicators. Protection of the drive unit. Space and cost saving because of integrated motor protection:, motor overload, phase failure and exceed acceleration time. Limiting of starting current prevents against mains and equipment, overload. Productivity by shortened stating times on heavy duty stating and, high permissible switching frequency. Individual configuration for every application. Easy operation. Comprehensive diagnostic via LED-flashing codes possible
