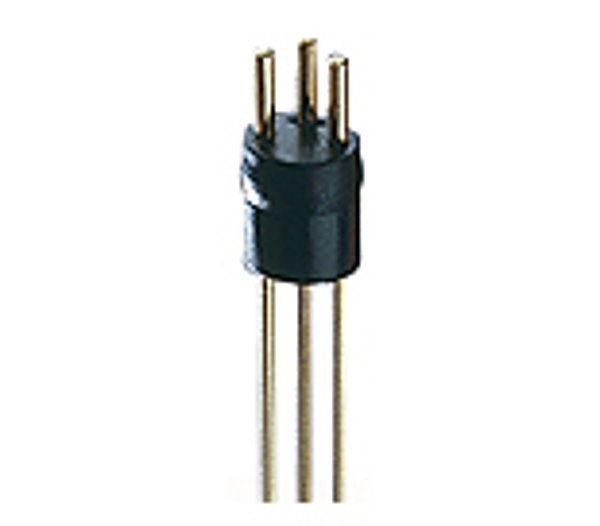

Belden 11654
RSME 3
RSME 3 - M8 Insert Sensor/Actuator Receptacle Connector: Male, insert, M8 - mating side, long print contacs - connecting side, 3-pin, A-coded, unshielded, black body, 50 AC / 60 DC, 4 A
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
M8 Insert Sensor/Actuator Receptacle Connector: Male, insert, M8 - mating side, long print contacs - connecting side, 3-pin, A-coded, unshielded, black body, 50 AC / 60 DC, 4 A. M8 Pico Receptacle insert connector, 3-pole for sensors, with long solder contacts, solid contacts on solder side.
Загрузки
Технические характеристики
| Product Family:: | Sensor / Actuator Connectors |
| Product Sub Family:: | M8 Insert |
| Mating Side:: | M8 |
| Connecting Side:: | Long Print Contacs |
| Brand:: | Lumberg Automation |
| Connector Type:: | Receptacle |
| Type of Contact / Gender:: | Male |
| Connector Design:: | Insert |
| Number of Pins:: | 3 |
| Coding:: | A |
| Shielding:: | Unshielded |
| Rated Voltage:: | 60 V |
| Rated Impulse Voltage:: | 1.5 kV |
| Operating Voltage:: | 50 AC / 60 DC |
| Rated Current*:: | 4 A |
| Contact Resistance:: | ≤ 10 mOhm |
| Insulation Resistance:: | ˃ 10^9 Ohm |
| Mating Cycles:: | ≤ 100 |
| Type of Connection:: | PCB |
| Ambient Temperature (Operation)*:: | - 25 °C - + 85 °C |
| Design Standard:: | IEC 61076-2-104 |
| Pollution Degree:: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category:: | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material:: | CuZn |
| Contact Plating:: | Cu/Au |
| Contact Bearer Material:: | PA |
| Contact Bearer Color:: | Black |
| Flammability Class (Contact Bearer):: | UL 94 V-0 |
| Potted:: | no |
| RoHS Compliant:: | yes |
| Note Derating:: | * Notice derating |
| Protection Degree / IP Rating Note:: | * only if mounted and locked in combination with Hirschmann / Lumberg connector. On the installation side tightness has to be assured by taking proper measures. |
| 11654: | RSME 3 |
Логистические характеристики
| ТН ВЭД: | |
| Страна происхождения: | CZ |
| EAN: | |
| Вес: | 0,00 kg |
| Длина: | 0,00 m |
| Ширина: | 0,00 m |
| Высота: | 0,00 m |
