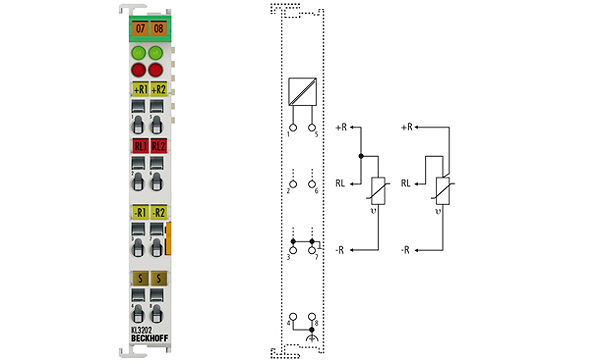

Beckhoff KL3202
KL3202 | 2-channel input terminal PT100 (RTD)
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The KL3202 analog input terminal allows resistance sensors to be connected directly. The Bus Terminal’s circuitry can operate the sensors using 2-wire or 3-wire connection techniques. Linearisation over the full temperature range is realised with the aid of a microprocessor. The temperature range can be selected freely. The Bus Terminal's standard setting is: resolution 0.1 °C in the temperature range of PT100 sensors in 3-wire connection. The run LEDs give an indication of the data exchange with the Bus Coupler. The error LEDs indicate sensor faults (e.g. a broken wire).
Технические характеристики
| Number of inputs: | 2 |
| Power supply: | via the K-bus |
| Technology: | 2-/3-wire |
| Sensor types: | PT100, PT200, PT500, PT1000, Ni100, Ni120, Ni1000 resistance measurement (e.g. potentiometer, 10 Ω…1.2/5 kΩ) |
| Connection method: | 2- or 3-wire (default: 3-wire) |
| Measuring range: | -200…+850 °C (PT sensors); -60…+250 °C (Ni sensors) |
| Resolution: | 0.1 °C per digit |
| Conversion time: | ~ 250 ms |
| Measuring current: | typ. 0.5 mA |
| Measuring error: | < ±1 °C |
| Electrical isolation: | 500 V (K-bus/signal voltage) |
| Current consumption power contacts: | – (no power contacts) |
| Current consumption K-bus: | typ. 60 mA |
| Bit width in the process image: | input: 2 x 16 bit data (2 x 8 bit control/status optional) |
| Configuration: | no address setting, configuration via Bus Coupler or controller |
| Special features: | open-circuit recognition |
| Weight: | approx. 70 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals: | CE, UL, Ex, GL |
