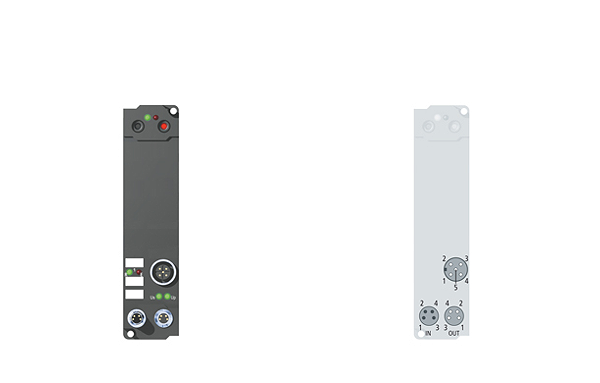

Beckhoff IE6012
IE6012 | 1-channel serial interface TTY, 20 mA current loop
Описание
The IE6012 serial interface module allows the connection of devices with a 20 mA current interface, which operates passively. The module transmits the data in a fully transparent manner to the higher-level automation device. The data is transferred via the fieldbus using a simple handshake protocol. This does not have any effect on the protocol of the serial interface. The active serial communication channel functions independently of the higher-level bus system in full duplex mode at up to 115,200 baud, while a 128 byte receive buffer and a 16 byte send buffer are available. The current interface guarantees high immunity to interference through electrically isolated signals with injected current.
Технические характеристики
| Data transfer channels: | 2 (1/1), TxD and RxD, full duplex |
| Data transfer rates: | 1200…115,200 baud, 9600 baud (8 bits, no parity, 1 stop bit) is preset |
| TTY connection: | M12, screw type |
| Nominal voltage: | 24 V DC (-15 %/+20 %) |
| Bit transfer: | 2 x 20 mA |
| Load: | < 500 Ω |
| Cable length: | max. 1000 m twisted pair |
| “0“ signal current: | 0…3 mA |
| “1“ signal current: | 14…20 mA |
| Data buffer: | 128 bytes receive buffer, 16 bytes transmit buffer |
| Power supply connection: | feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin |
| Current consumption from US (without sensor current): | 40 mA |
| Bit width in the process image: | input/output: 3 x 8 bit user data, 1 x 8 bit control/status (up to 5 x 8 bit user data are possible) |
| Electrical isolation: | TTY/control voltage: 500 V, to the fieldbus: yes, via IP-Link |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 65/66/67 (conforms to EN 60529)/variable |
| Approvals: | CE, UL |
