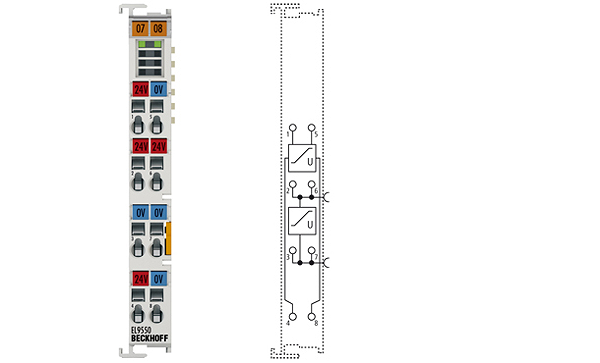

Beckhoff EL9550
EL9550 | System terminal, surge filter system and field supply
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The EL9550 system terminal contains an overvoltage filter for the 24 V field and system supply. The filter protects the EtherCAT Terminal from line-bound surge voltages that can occur due to high-energy, dynamic disturbances such as switching overvoltages at inductive consumers or indirect lightning strikes at the supply lines.
Технические характеристики
| Technology: | surge filter system and field supply |
| Nominal voltage: | 24 V (-15 %/+20 %) |
| Surge filter field supply: | yes |
| Surge filter system supply: | yes |
| Rated current field supply: | ≤ 10 A |
| Rated current system supply: | ≤ 1.5 A |
| PE connection: | – |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Diagnostics: | – |
| Weight: | approx. 50 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all ESxxxx terminals |
| Approvals: | CE, UL, Ex, IECEx |
