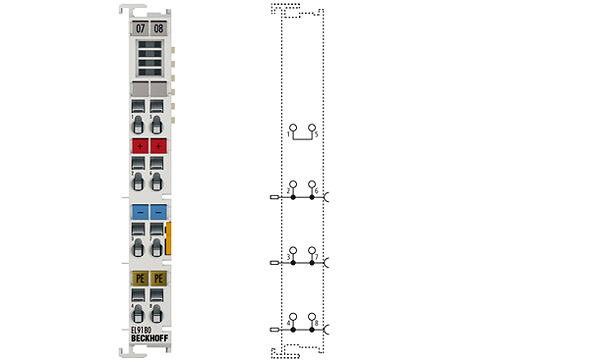

Beckhoff EL9180
EL9180 | Potential distribution terminal, 2 x 24 V DC, 2 x 0 V DC, 2 x PE
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The EL9180 allows the supply voltage to be accessed a number of times via spring force terminals. The EtherCAT Terminal makes it unnecessary to use additional terminal blocks on the terminal strip.
Технические характеристики
| Technology: | potential distribution terminal |
| Current load: | ≤ 10 A |
| Power LED: | – |
| Defect LED: | – |
| Renewed infeed: | – |
| Current consumption E-bus: | – |
| Nominal voltage: | arbitrary up to 230 V AC/DC |
| Integrated fine-wire fuse: | – |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Diagnostics in the process image: | – |
| Reported to E-bus: | – |
| PE contact: | yes |
| Shield connection: | – |
| Connection facility to additional power contact: | 2 |
| Bit width in the process image: | 0 |
| Electrical connection to DIN rail: | – |
| Housing width: | 12 mm |
| Side by side mounting on EtherCAT Terminals with power contact: | yes |
| Side by side mounting on EtherCAT Terminals without power contact: | – |
| Weight: | approx. 50 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Pluggable wiring: | for all ESxxxx terminals |
| Approvals/markings: | CE, UL, ATEX |
| Ex marking: | II 3 G Ex nA IIC T4 Gc |
