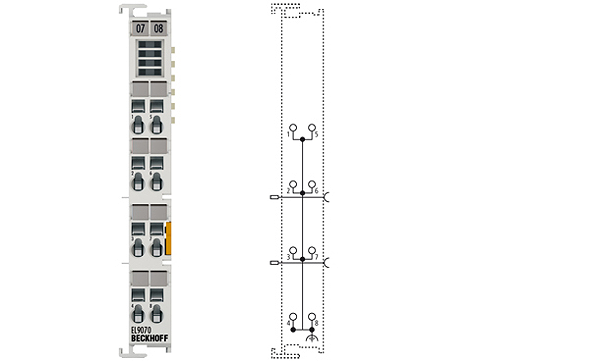

Beckhoff EL9070
EL9070 | Shield terminal
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The EL9070 shield terminal provides eight terminal points with the potential of the mounting rail and enables the screening to be picked up without further modular terminal blocks or wiring. With its internal seamless copper surface, the EL9070 offers good screening between two EtherCAT Terminals.
Технические характеристики
| Technology: | shield terminal |
| Current load: | ≤ 10 A |
| Power LED: | – |
| Defect LED: | – |
| Renewed infeed: | – |
| Current consumption E-bus: | – |
| Nominal voltage: | arbitrary up to 230 V AC |
| Integrated fine-wire fuse: | – |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Diagnostics in the process image: | – |
| Reported to E-bus: | – |
| PE contact: | – |
| Shield connection: | 8 x |
| Connection facility to additional power contact: | no |
| E-bus looped through: | yes |
| Bit width in the process image: | 0 |
| Electrical connection to DIN rail: | yes |
| Housing width: | 12 mm |
| Side by side mounting on EtherCAT Terminals with power contact: | yes, left without PE |
| Side by side mounting on EtherCAT Terminals without power contact: | – |
| Special features: | dissipation of EMC interference via large copper surfaces on the DIN rail |
| Weight: | approx. 50 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Approvals/markings: | CE, UL |
