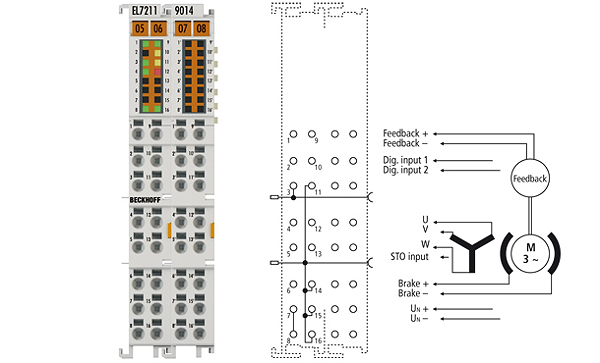

Beckhoff EL7211-9014
EL7211-9014 | Servomotor terminal with OCT and STO, 50 V DC, 4.5 A (I, rms
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The EL7211-9014 servomotor EtherCAT Terminal with integrated One Cable Technology (OCT) offers high servo performance in a very compact design for motors from the AM8100 up to 4.5 A (I, rms. The One Cable Technology combines a motor cable and an absolute feedback system in a single cable. The integrated electronic type plate of the AM81xx motors can be read in automatically by the servo terminal to configure the motor parameters automatically. Thus, wiring and commissioning expenditure are minimised.
Технические характеристики
| Technology: | compact Drive Technology |
| Load type: | permanent magnet-excited three-phase synchronous motor |
| Number of channels: | 1 |
| Number of outputs: | 1 x servomotor, 1 x motor brake |
| Number of inputs: | 2 x end position, 1 x feedback, 1 x STO |
| Connection method: | direct motor connection with OCT |
| Supply voltage electronics: | 24 V DC (via power contacts) |
| Supply voltage power: | 8…50 V DC (external) |
| Output current (rms): | 4.5 A |
| Peak current (rms): | max. 9.0 A for 1 s |
| Performance increase: | – |
| Output current with ZB8610 (rms): | – |
| Peak current with ZB8610 (rms): | – |
| Frequency range: | 0…599 Hz |
| PWM clock frequency: | 16 kHz |
| Current controller frequency: | 32 kHz |
| Rated speed controller frequency: | 16 kHz |
| Output voltage motor brake: | 24 V DC |
| Output current motor brake: | max. 0.5 A |
| Current consumption power contacts: | typ. 100 mA + holding current motor brake |
| Current consumption E-bus: | typ. 120 mA |
| Distributed clocks: | yes |
| Special features: | compact and system-integrated, absolute feedback, One Cable Technology (OCT), plug and play, STO (Safe Torque Off), SS1 |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Weight: | approx. 95 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/see documentation |
| Approvals/markings: | CE, UL, TÜV SÜD |
