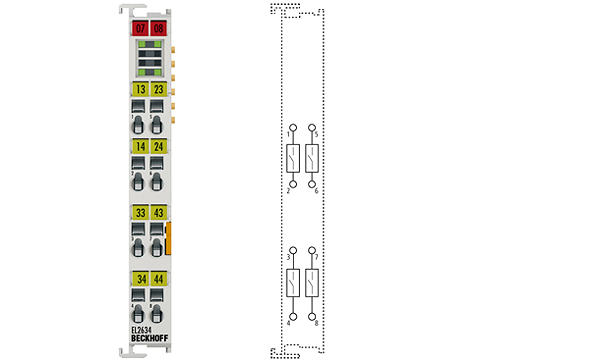

Beckhoff EL2634
EL2634 | 4-channel relay output terminal 250 V AC/30 V DC
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The EL2634 output terminal has four relays, each of which has a single contact. The relay contact is suitable for use at up to 250 V AC or 30 V DC. The EtherCAT Terminal indicates its signal state by means of light emitting diodes. The EL2634 is equipped with potential-free contacts.
Технические характеристики
| Connection technology: | relay output |
| Number of outputs: | 4 x make contacts |
| Nominal voltage: | 250 V AC/30 V DC |
| Load type: | ohmic, inductive |
| Distributed clocks: | – |
| Ohmic switching current: | 4 A AC/DC per channel |
| Inductive switching current: | 2 A AC/DC per channel |
| Minimum permitted load: | 0.1 mA at 0.1 V DC (at 120 operations/min.) |
| Lamp test, electronic ballast: | – |
| Current consumption E-bus: | 80 mA |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Current consumption power contacts: | – |
| Bit width in the process image: | 4 outputs |
| Operating cycles mech. (min.): | 2 x 107 (at 18 x 103 switching cycles per hour) |
| Operating cycles electr. (min.): | 1 x 105 (3 A/30 V DC ohmic load) |
| Configuration: | no address or configuration setting |
| Weight: | approx. 70 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Pluggable wiring: | for all ESxxxx terminals |
| Approvals/markings: | CE, UL |
