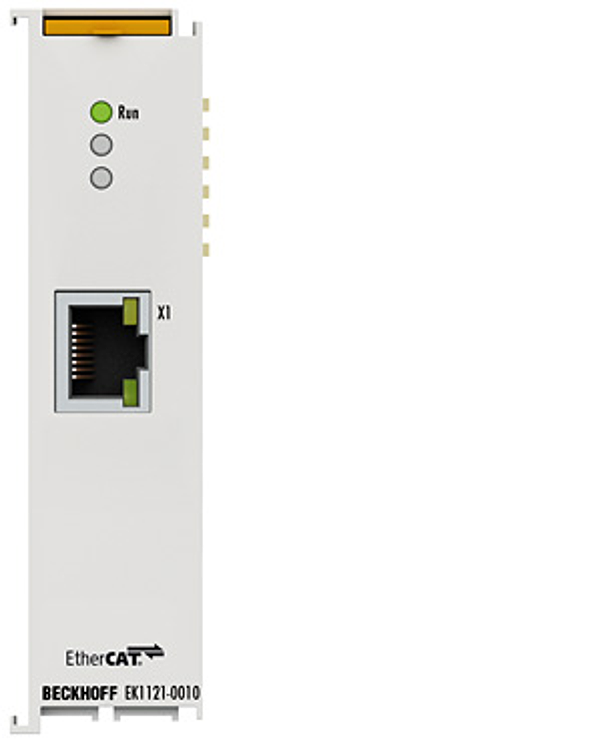

Beckhoff EK1121-0010
EK1121-0010 | 1-port EtherCAT junction, Extended Distance
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
In combination with an EK1101-0010 EtherCAT Extended Distance Coupler, the single-port EK1121-0010 EtherCAT Extended Distance junction enables the bridging of distances up to 300 m. The EK1121-0010 can be installed at any point in an EtherCAT segment between the EtherCAT Terminals (ELxxxx). The EtherCAT junction is connected via an RJ45 socket. The link and activity status is displayed directly at the port next to the Run LED.
Технические характеристики
| Task within EtherCAT system: | coupling of 100BASE-TX EtherCAT networks |
| Data transfer medium: | Ethernet/EtherCAT cable (min. Cat. 5), shielded |
| Distance between stations: | max. 300 m (copper, Cat. 5, 4-wire) |
| Protocol: | EtherCAT |
| Delay: | approx. 1 µs |
| Data transfer rates: | 100 Mbit/s |
| Configuration: | not required |
| Bus interface: | 1 x RJ45 |
| Power supply: | from E-bus |
| Current consumption: | typ. 160 mA |
| Weight: | approx. 65 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals/markings: | CE |
