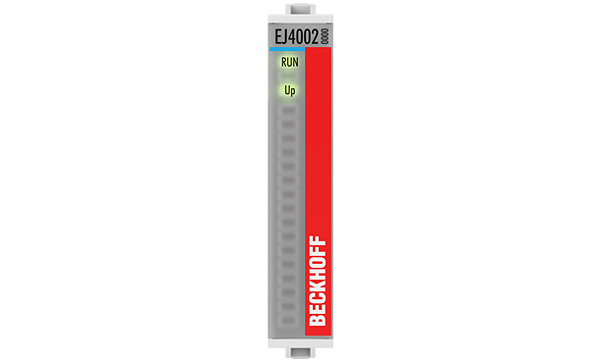

EJ4002
EJ4002 | 2-channel analog output 0…10 V, 12 bit
The EJ4002 analog output generates signals in the range between 0 and 10 V. The voltage is supplied to the process level with a resolution of 12 bits and is electrically isolated. The output channels of the EtherCAT plug-in module have a common ground potential. The EJ4002 combines two channels in one housing. The output stages are powered by the 24 V supply. The signal state of the EtherCAT plug-in module is indicated by light emitting diodes.
Number of outputs: | 2 |
Power supply: | via the E-bus |
Signal voltage: | 0…10 V |
Distributed clocks: | yes |
Load: | > 5 kΩ (short-circuit proof) |
Measuring error: | < 0.1 % (relative to full scale value) |
Output error: | < ±0.1 % (relative to end value) |
Resolution: | 12 bit |
Electrical isolation: | 500 V (E-bus/signal voltage) |
Conversion time: | ~ 150 µs |
Current consumption periphery: | – |
Auxiliary power current: | typ. 20 mA |
Current consumption E-bus: | typ. 90 mA |
Bit width in the process image: | 2 x 16 bit AO output |
Special features: | Optional watchdog: user-specific output value with ramp; user synchronisation can be activated. |
Dimensions (W x H x D): | approx. 12 mm x 66 mm x 55 mm |
Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
Relative humidity: | 95 %, no condensation |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Protection class: | IP 20 |
Approvals/markings: | CE, UL |
