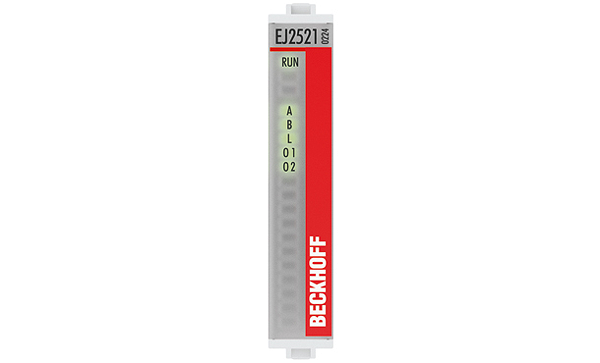

Beckhoff EJ2521-0224
EJ2521-0224 | 1-channel pulse train output 24 V DC
По запросу. Пожалуйста, отправьте нам письмо, чтобы узнать цену и наличие.
"ucnguBrctvdgcxgt0eqo"
Описание
The EJ2521-0224 single-channel pulse-train output module outputs a digital frequency signal via two 24 V tracks (A/B). The signal can be used to control motor drivers or other signal receivers, which are controlled by single cycles. The pulse sequence and the pulse frequency or number of pulses are specified directly via the process data. The module has a 24 V latch input for connecting a limit switch for example and two 24 V switch outputs (capture/compare), which can be switched depending on the counter value in the module. The LEDs show the active outputs and the input.
Технические характеристики
| Connection technology: | pulse train (frequency output) |
| Number of outputs: | 1 channel (2 outputs A, B) |
| Capture/compare input/output: | 1/2 |
| Input specification: | 24 V DC |
| Output specification: | 5…24 V DC, external supply |
| Load type: | ohmic, opto-coupler, differential inputs |
| Distributed clocks: | yes |
| Max. output current: | 1 A |
| Base frequency: | 0…500 kHz, 50 kHz default |
| Duty factor: | 0…100 % |
| Resolution: | max. 15 bit (16 bit + sign) |
| Reverse voltage protection: | yes |
| Power supply: | via the E-bus |
| Current consumption E-bus: | typ. 135 mA |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Special features: | different modes, ramp function, travel distance control |
| Dimensions (W x H x D): | approx. 12 mm x 66 mm x 55 mm |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection class: | IP 20 |
| Approvals/markings: | CE, UL |
