ABB 2CPX041124R9999

MS228

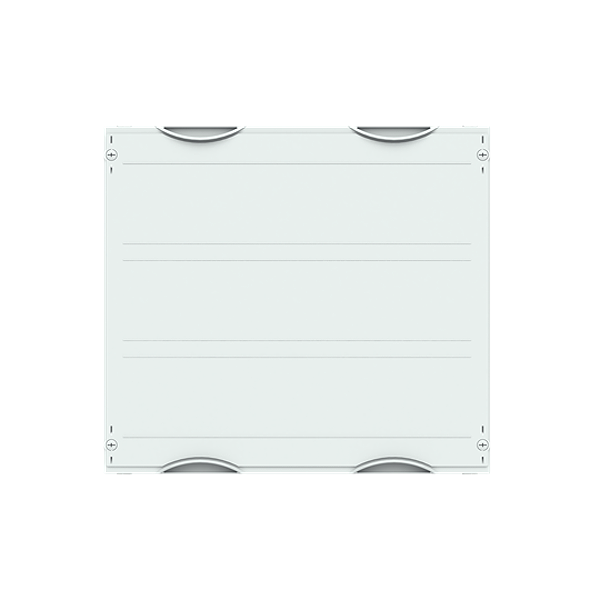

MS228 Busbar Module

Описание

Interior fitting module, CombiLine, mounted in cabinet, for Busbar system vertical, Ratchet unit 3 GU = 450 mm, panel width 2 = 500 mm, 72 Space units, unequipped for the installation of , with busbar system 4-pole, Busbar alignment: vertical, with busbar holders ZX518, Busbar center distance: 40 mm, with 4 Cu busbars, rated current maximum 440 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm
