ABB 1SLM006500S1218

M65W354TN3

MISTRAL65 transparent door 54M S&J

Описание

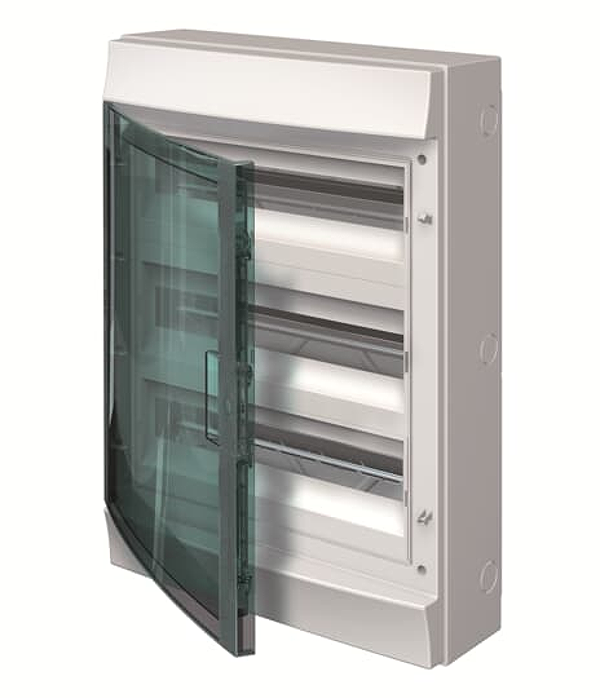

Consumer unit, series Mistral 65, for the internal use, with Door, class of protection II (double insulated), degree of protection IP65, applicable standards: EN 60670-1, EN 60670-24, IK code 09, Rated operational voltage 400V AC 50/60 Hz, rated current 125 A, Glow wire resistance 750°C, in RAL 7035, enclosure out of Polystyrol, transparente single-leaf door, door out of thermoplast, in RAL PETROLBLAU, with Snap lock, door opening angle 180 degree, door hinge right or left, cable entry on top via pre-punched, on bottom via pre-punched, on side via pre-punched, dimensions in mm (H x W x D): 600 x 430 x 155, 3-rows, Space units 56, Row distance in mm: 125 / 150, covers out of Plastic, Captive screws, with N/PE Quick-terminal, device support removable
