Produkt
Di-soric
203128
USTI12M200-I-IBSL
Poproś o ofertę

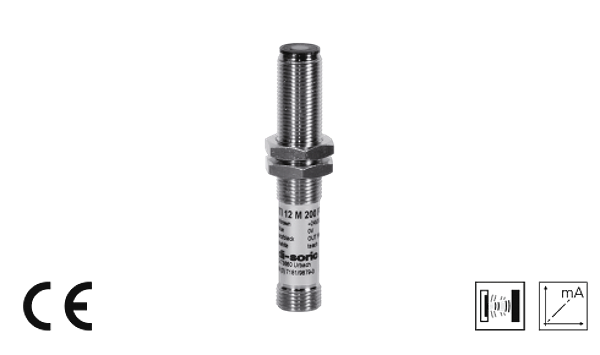

Prawa autorskie do obrazu: Di-soric
Di-soric 203128
USTI12M200-I-IBSL
Ultrasonic Sensor
Na prośbę. Prześlij nam wiadomość e-mail z zapytaniem o cenę i dostępność.
"ucnguBrctvdgcxgt0eqo"
Opis
Narrow detection beam / small blind zone. Analog output: increasing/decreasing, teachable. Small design. Scanning does not depend on surface
Pliki do pobrania
Parametry techniczne
| Operating principle: | Ultrasonic sensor |
| Evaluation: | analog |
| Size: | M12 x 1 (thread) |
| Design: | screw |
| Service voltage: | 15 ... 30 V DC |
| No-load current: | < 30 mA |
| Operating distance: | 20 ... 200 mm |
| Sensitivity adjustment: | Remote teach |
| Analog output: | 4 ... 20 mA |
| Sound frequency: | 400 kHz |
| Ripple: | 10 % |
| Linearity analog output: | < 1 % / Sn max. |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Switching frequency: | 13 Hz |
| Reproducibility: | 0,5 % |
| Ambient temperature, operation: | -25 … +70 °C |
| Load resistance: | < 300 Ω |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 65 |
| Casing material: | brass nickel plated |
| Connection: | Connector, M12, 4-poled |
Parametry logistyczne
| ECCN: | |
| Kraj pochodzenia: | DE |
| EAN: | |
| Waga: | 0,26 kg |
| Długość: | 0,00 m |
| Szerokość: | 0,00 m |
| Wysokość: | 0,00 m |
