Producto
Pulsotronic
08330000065
KH1-M8EB45-DPÖ2-V1
Solicitar una oferta
Derechos autor imagen: Pulsotronic
Pulsotronic 08330000065
KH1-M8EB45-DPÖ2-V1
Halleffect sensor
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
Descargas
Parámetros técnicos
| Name: | KHD1-M8EB45-DPÖ2-V1 |
| Order number: | 08330000065 |
| Switching distance: | 1 mm |
| Mounting: | shielded |
| Switch type: | N.C. |
| Signal Type: | DC PNP |
| Connection: | connector M8 |
| Connection diagramm: | |

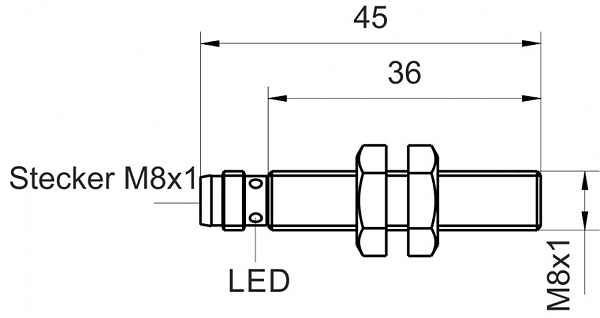

| Dimension (in mm): | fine-pitch thread M8 x 45 |
| Special features: | hall sensor, full-metal housing 2x N.C. Output with 90° Phase shift |
| Operating voltage: | 10 - 30 V DC |
| Voltage drop: | 1,5 V |
| Min. load current: | 20 mA |
| Max. load current: | 200 mA |
| No load current: | ≤ 20 mA |
| Leakage current: | ≤ 10 mA |
| Switching frequency: | 2000 Hz |
| Operating temperature: | -40 ° C to 80 ° C |
| Temperature drift: | ≤ 10 % |
| Swiching state: | LED |
| Digital output: | Output 2x PNP Normally Closed 1x Nordpol, 1x Südpol |
| Short-circuit proof: | yes |
| Overload protection: | yes |
| Reverse voltage protection: | yes |
| Protection category: | IP67 |
| EMC-level: | DIN EN 60947-5-2:2008 |
| Housing material: | Stainless steel V2A |
| Utilisation category: | DC 13 |
| Contact material: | CuSn |
| Contact surface material: | NiAu |
| Nominal operating voltage: | 24 V DC |
| Termination: | Connector M8 4pin |
| FIT / MTTF acc. to SIEMENS 29500: | 87,80 / 1300 |
| Errors and omissions exceptet: |
