Producto
Omron
G3PF0016E
G3PF-535B-STB 24VDC
Solicitar una oferta

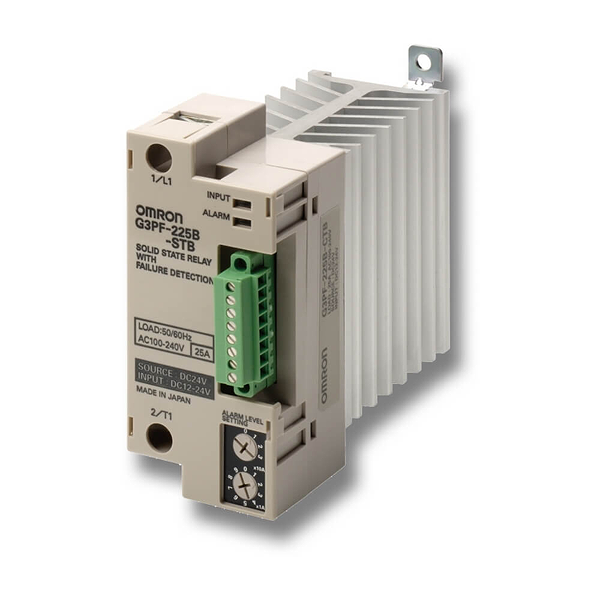

Derechos autor imagen: Omron
Omron G3PF0016E
G3PF-535B-STB 24VDC
35A 200-480VAC 2 Salidas Conector Tornillos Extraible
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
Parámetros técnicos
| Application: | ON/OFF control |
| Mounting method: | DIN rail/screw |
| Terminal: | Screw |
| Complete with socket: | |
| With LED indicator: | |
| Rated operational voltage, AC: | 200-480 V |
| Operating voltage range, AC: | 180-528 V |
| Control current max.: | 10 mA |
| Must operate voltage max.: | 9.6 V |
| Must release voltage min.: | 1 V |
| Maximum operating temperature: | 60 °C |
| Minimum operating temperature: | -20 °C |
| Isolation: | Phototriac |
| Functions: | HB/HS alarm for 3-phase heaters |
| Number of phases: | 1 |
| Rated operation current Ie at AC-1: | 35 A |
| Supply voltage DC: | 9.6-26.4 V |
| Switching at zero-crossing: |
Parámetros logísticos
| ECCN: | |
| País de origen: | JPN |
| EAN: | |
| Peso: | 0,00 kg |
| Longitud: | 0,00 m |
| Anchura: | 0,00 m |
| Altura: | 0,00 m |
