Producto
Omron
G3PE2044G
G3PE-545B-2N 12-24VDC
Solicitar una oferta
Derechos autor imagen: Omron

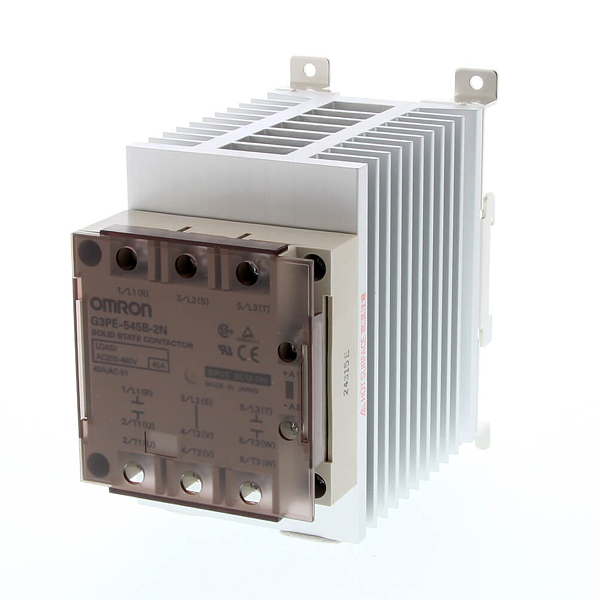

Omron G3PE2044G
G3PE-545B-2N 12-24VDC
45A 200-480Vca 3 Fases 2 polos Carril DIN Con disip. Con paso x cero
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
Parámetros técnicos
| Application: | ON/OFF control |
| Number of phases: | 3 |
| Number of poles: | 2 |
| Mounting method: | DIN rail/screw |
| Terminal: | Screw |
| Complete with socket: | |
| With LED indicator: | |
| Rated operational voltage, AC: | 200-480 V |
| Operating voltage range, AC: | 180-528 V |
| Rated operation current Ie at AC-1: | 45 A |
| Permissible I²t value: | 1260 A²s |
| Applicable heater capacity (AC1: resistive load): | 37.4 kW |
| Height: | 140 mm |
| Width: | 80 mm |
| Depth: | 155 mm |
| Supply voltage DC: | 12-24 V |
| Control current max.: | 10 mA |
| Must operate voltage max.: | 9.6 V |
| Must release voltage min.: | 1 V |
| Maximum operating temperature: | 80 °C |
| Minimum operating temperature: | -30 °C |
| Isolation: | Phototriac |
Parámetros logísticos
| ECCN: | |
| País de origen: | JPN |
| EAN: | |
| Peso: | 0,00 kg |
| Longitud: | 0,00 m |
| Anchura: | 0,00 m |
| Altura: | 0,00 m |
