Producto
Omron
CP1W0164C
CP1E-E40SDR-A
Solicitar una oferta
Derechos autor imagen: Omron

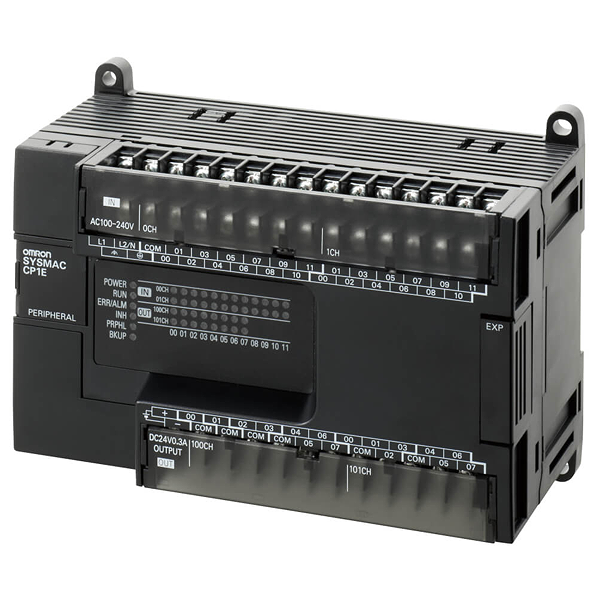

Omron CP1W0164C
CP1E-E40SDR-A
CPU S 24/16 E/S AC Salidas Relé | 2K + 2K
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
Parámetros técnicos
| Supply voltage type: | AC |
| Number of digital inputs: | 24 |
| Input type: | PNP/NPN |
| Number of digital outputs: | 16 |
| Output type: | Relay |
| Program capacity: | 2 K steps |
| Data memory capacity: | 2 K words |
| Logic execution time: | 1.19 µs |
| Communication port(s): | USB |
| Number of Ethernet ports: | 0 |
| Number of USB ports: | 1 |
| Number of RS-232 ports: | 0 |
| Number of RS-485 ports: | 0 |
| Communication option(s): | CompoBus/S Slave |
| Max. encoder input frequency: | 10 kHz |
| Max. number of PTP axes: | 0 |
| Max. pulse output frequency: | 0 kHz |
| Function Block programming: | |
| Battery-free memory backup: | |
| Real-time clock: | |
| Analog option boards: | |
| Max. number of analog I/O channels: | 24 |
| Max. number of local I/O points: | 160 |
| Max. number of expansion units: | 3 |
| Built-in auxiliary 24 VDC output: | 0 mA |
| Operating temperature range: | 0-55 °C |
| Height: | 90 mm |
| Width: | 150 mm |
| Depth: | 79 mm |
| Product Weight (unpacked): | 660 g |
Parámetros logísticos
| ECCN: | |
| País de origen: | CHN |
| EAN: | |
| Peso: | 0,00 kg |
| Longitud: | 0,00 m |
| Anchura: | 0,00 m |
| Altura: | 0,00 m |
