Producto
Escha
8055748
VA22-24.3-0,4-DA22-24.3-10/S370
Solicitar una oferta
Derechos autor imagen: Escha

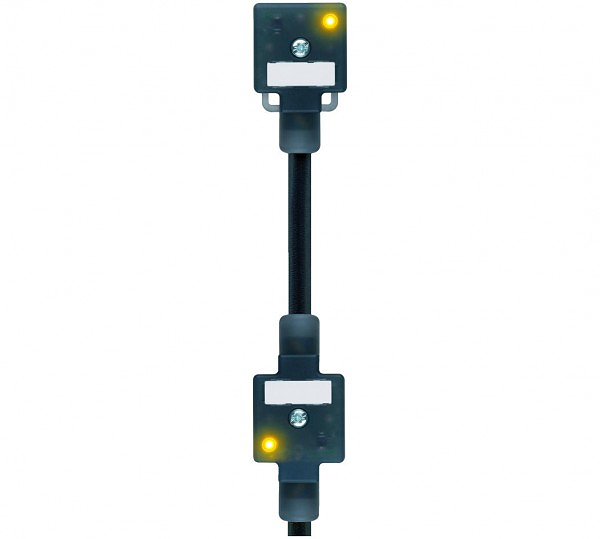

Escha 8055748
VA22-24.3-0,4-DA22-24.3-10/S370
Double-valve-connector, housing style A, 2+PE bridged, sensor-/actuator cable, suppressor diode
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
Flexible, silicone- and halogen-free control line with high mechanical strength. The cable is chemicals, hydrolysis-, and microbes- resistant. The drag-chain application is possible at a bending radius of minimum 10 x d. Due to its weld-field immunity, the cable is very well suited for the flexible application in robotics, machine-tool, and metal-cutting production. The cables meet the UL and CSA (UL10493/20549; cULus) requirements.
Descargas
Parámetros técnicos
| Connector: | female, angled, Valve A |
| Housing style: | A |
| Fixing screw: | Metal, CuZn, nickel-plated |
| Wire cross-section: | 4 x 0.75 mm² |
| Wire insulation material: | PP |
| Rated voltage: | 24V AC/DC |
| Conductor structure: | 42 x 0,15 mm |
| Insulation resistance (Ω): | ≥10 8 |
| Ambient temperature product: | -30°C...+90°C |
| Signal status-indicator: | LED YE/YE |
| Protection circuit: | Suppressor diode |
| Contact material: | Metal, CuSn, silver-plated |
| Special features: | flame retardant, seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant, hydrolysis proof, drag chain-adapted, torsion resistant, welding sparks resistant, halogen free, silicone free, oil resistant |
| Grip body material: | Plastic, TPU, BK, translucent |
| Sealing (female) material: | IP65, IP67, IP68 |
| Degree of protection (mounted): | >100 mating cycles |
Parámetros logísticos
| ECCN: | |
| País de origen: | Deutschland |
| EAN: | |
| Peso: | 0,00 kg |
| Longitud: | 0,00 m |
| Anchura: | 0,00 m |
| Altura: | 0,00 m |
