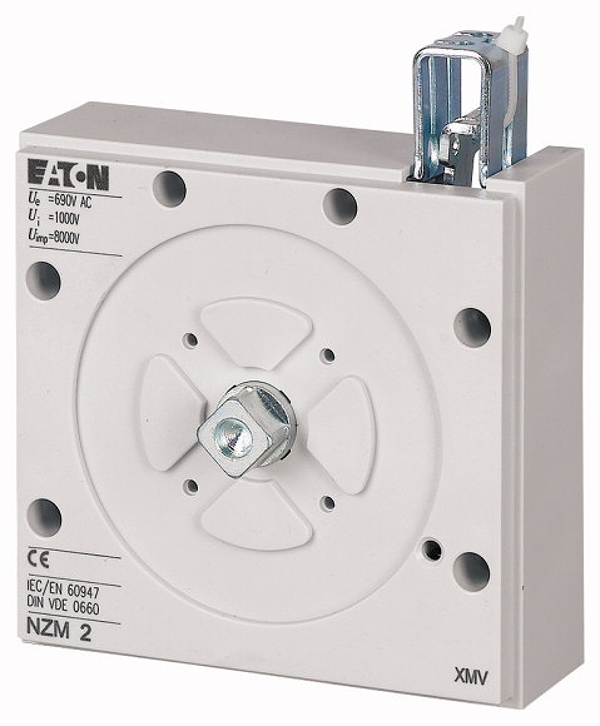

Eaton 281582

NZM2-XMV

Interlock, mechanical, size 2

Descripción

EL-Nummer (Norway). 0004359009. Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: allows interlocking of 2, 3 or up to 4 switches, including different construction sized switches, between digital inputs.for every switch an interlocking module NZM…-XMV and a rotary handle on switch NZM…-XDV or a door coupling rotary handle NZM…-XTVD and Bowden cables are required. Cannot be combined with UL/CSA door coupling rotary handles NZM…-XTV…-NA or paralleling mechanisms, side wall operators and remote operator as well as insulating surrounds. Can be used for: NZM2(-4) , PN2(-4), N(N/O)2(-4)
