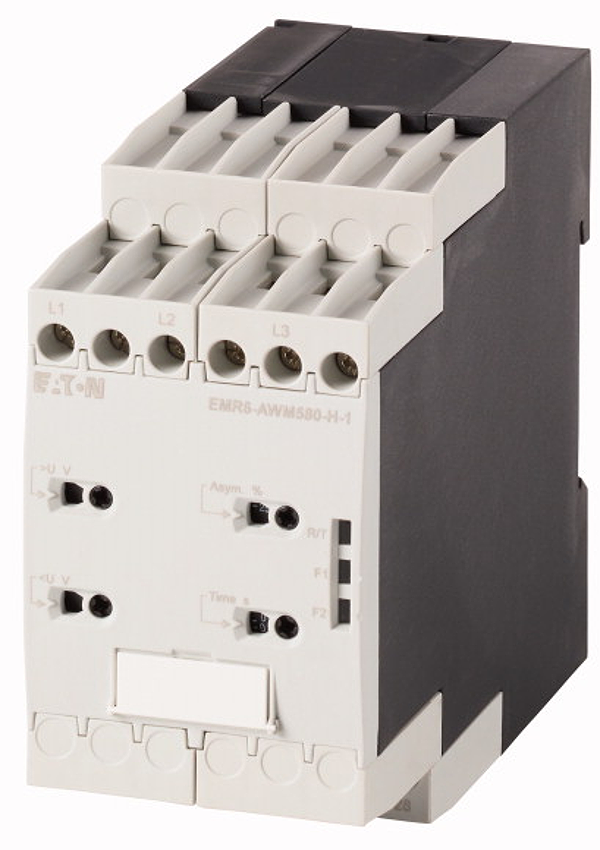

Article image 184765

Eaton 184765

EMR6-AWM580-H-1

Phase monitoring relays, Multi-functional, 350 - 580 V AC, 50/60 Hz

Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"

Descripción

Alternate Catalog No. EMR6-AWM580-H-1. EL-Nummer (Norway). 4101961. Phase monitoring relays, Product range: EMR Measuring and monitoring relays, Multi-functional, Power supply from the measuring circuit, On-delay/off-delay: none = 0 or adjustable between 0.1 - 30 s, Imbalance threshold values adjustable 2 - 25 % of mean value of phase voltages, Three-phase networks, Automatic phase sequence correction (can be disabled), Monitoring voltage per phase: UN= 350 - 580 V AC, 50/60 Hz V AC, Monitoring of: Phase sequence (can be deactivated), Phase failure, Overvoltage, Undervoltage, Imbalance, Phase sequence, Supply voltage: 350 - 580 V AC, 50/60 Hz, Mounting position: As required, Fixing: Snap fixing, top-hat rail IEC/EN 60715, Width: 45 mm, Standards: IEC, UL, CSA, CCC, GL

Parámetros logísticos

ECCN:
País de origen: DE
EAN:
Peso: 0,16 kg
Longitud: 0,00 m
Anchura: 0,00 m
Altura: 0,00 m
