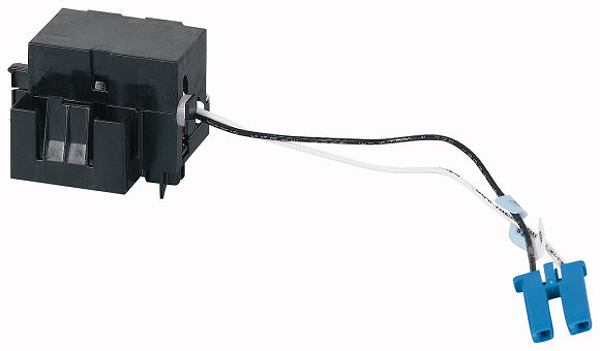

Eaton 184281

IZMX-SR24DC-1

Closing release 24 VDC

Descripción

Alternate Catalog No. 67C2822G63. EL-Nummer (Norway). 4398624. Accessories, closing release, Can be combined with a shunt release and an undervoltage release., Retrofitting kit, Maximum operating frequency Actuations/minute 3, Limited to 3/min due to the high pick-up current for 35 ms., Please note - the circuit-breaker's switching frequency = 60/h, Rated control voltage Us 24 V DC V, Operating range x US 0,85 - 1,1 Factor, max. pick-up current (35ms) In 19 A, max. pull-in power (35ms) AC/DC 500 VA/W, Circuit-breaker total switching time @ US=100% 35 ms, For use with IZMX16..., IZMX40..., INX16..., INX40...
