178767

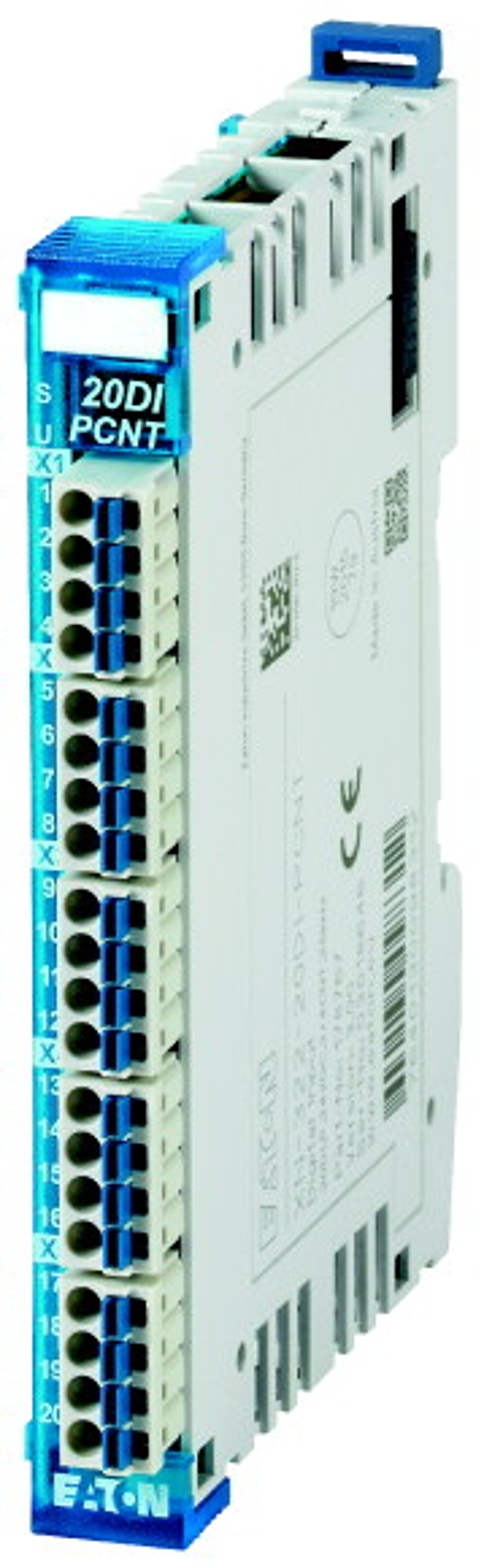

XN-322-20DI-PCNT
Digital input module; 20 digital inputs 24 V DC each; pulse-switching; 2/4 CNT; 25 kHz
Alternate Catalog No. XN-322-20DI-PCNT. Digital I/O module with sixteen 24 VDC / 3.7 mA (EN 61131-2 type 1) inputs with a 0.5 ms input filter. An additional four 24 VDC / 3.7 mA (EN 61131-2 type 1) inputs with a 0.01 ms input filter can be used as four 8-bit or two 16-bit counters with an input frequency of up to 25 kHz.
ECCN: | |
País de origen: | AT |
EAN: | |
Peso: | 0,05 kg |
Longitud: | 0,00 m |
Anchura: | 0,00 m |
Altura: | 0,00 m |
