Eaton 138389

NZM3-4-XAD630

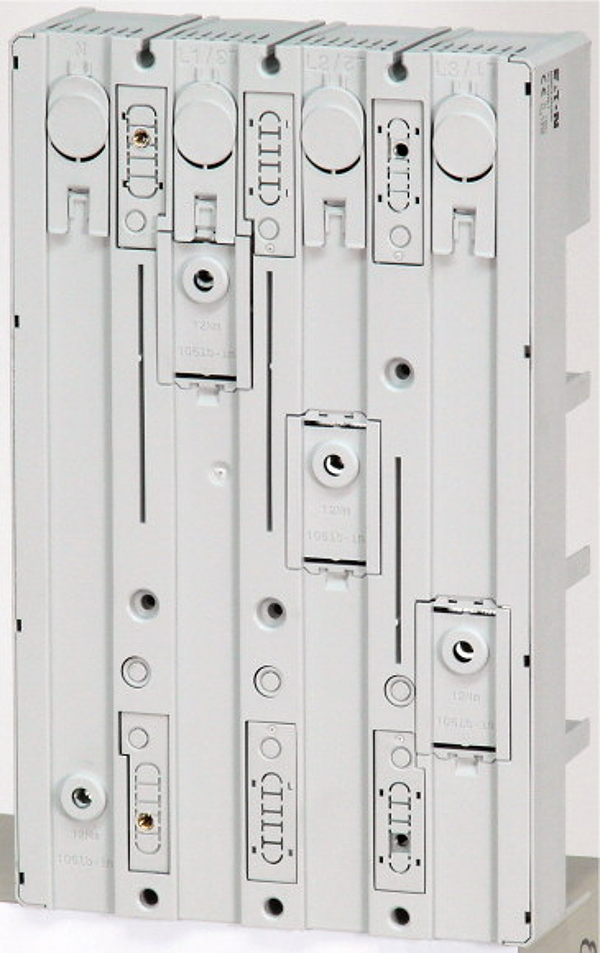

Busbar adapter, 4p, for NZM3, 630A, UL508

Descripción

EL-Nummer (Norway). 0001718010. Type-checked busbar adapter for NZM circuit-breaker and N switch-disconnector, for surface mounting on Cu-busbars 12-30x5-10, double t and triple t profile, rated operational current Ie=630A, can be used for NZM3, PN3, N(S)3, NZM3(-4), PN3(-4), N3(-4), adapter width=185mm, rated operating voltage Ue=690VAC, screw connection on the busbar 5mm or 10mm thickness, cable connection at bottom, temperature resistant to 120 °C, self-extinguishing to UL 94, track resistance CTI 200, number of poles=4 pole, between busbar centers=60mm, can be used in conjunction with busbar system SASY 60i
