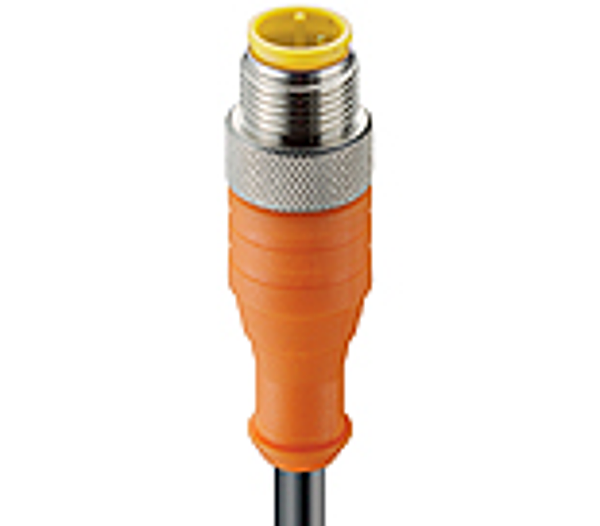

Belden 54921
RST 3U-226/5 M
RST 3U-226 - 1/2"-20UNF-2B Sensor/Actuator Single-Ended Cordset: Male, straight, 3-pin, U-coded, yellow body, 230 V AC/DC, 4 A; PUR black cable, 3-wires, 0.50 mm²
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
1/2 inch-20 Micro actuator/sensor cordsets, single ended, 1/2-inch UNF, 3-poles, C-coding male straight connector, external threads with threaded joint and molded cable, IEC color code.". 1/2"-20UNF-2B Sensor/Actuator Single-Ended Cordset: Male, straight, 3-pin, U-coded, yellow body, 230 V AC/DC, 4 A; PUR black cable, 3-wires, 0.50 mm²
Descargas
Parámetros técnicos
| brown: | blue |
| Product Family:: | Sensor / Actuator Connectors |
| Product Sub Family:: | 1/2"-20UNF-2B |
| Brand:: | Lumberg Automation |
| Connector Type:: | Cordset, single ended |
| Type of Contact / Gender:: | Male |
| Connector Design:: | Straight |
| Number of Pins:: | 3 |
| Coding:: | U (1/2"-20UNF-2B) |
| Shielding:: | Unshielded |
| Attachment Type:: | Coupling Screw |
| Rated Voltage:: | 250 V |
| Rated Impulse Voltage:: | 2.5 kV |
| Operating Voltage:: | 230 V AC/DC |
| Rated Current*:: | 4 A |
| Contact Resistance:: | ≤ 10 mOhm |
| Insulation Resistance:: | ˃ 10^9 Ohm |
| Mating Cycles:: | ≤ 100 |
| Ambient Temperature (Operation)*:: | - 40 °C - + 90 °C |
| Protection Degree / IP Rating**:: | IP65, IP67, IP69K |
| Pollution Degree:: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category:: | II acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material:: | CuZn |
| Contact Plating:: | Cu/Au |
| Contact Bearer Material:: | TPU-GF |
| Contact Bearer Color:: | Yellow |
| Flammability Class (Contact Bearer):: | UL 94 HB |
| Molded Body Material:: | TPU |
| Molded Body Color:: | Yellow |
| Flammability Class (Molded Body):: | UL 94 HB |
| Attachment Material:: | CuZn |
| Attachment Plating:: | Nickel-plated |
| Fastening Torque (Attachment):: | M 12x1: (50-60) Ncm, hand-tight |
| Cable Number:: | 226 |
| Conductor Size:: | 0.50 mm² |
| Number of Wires:: | 3 |
| Minimal Bending Radius (Fixed Inst):: | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst):: | ˃ 10 x D |
| Cycles (Bending):: | ˃ 5 M |
| Cycles (Torsion):: | ˃ 5 M @ ± 360 °/1 m |
| Conductor material:: | Cu |
| Cable Jacket Material:: | PUR |
| Cable Jacket Color:: | black |
| Cable Diameter D:: | ø 4.6 ± 0.20 mm |
| Wire Insulation Material:: | PP |
| Insulated Wire Diameter:: | ø 1.50 mm |
| Ambient Temperature (Fixed Installation):: | - 50 °C - + 105 °C (UL: + 80 °C) |
| Ambient Temperature (Flex Installation):: | - 25 °C - + 105 °C (UL: + 80 °C) |
| Ambient Temperature (Drag Chain Inst):: | - 25 °C - + 60 °C |
| UL Cable Type:: | AWM: 20549 |
| Flammability Class (Cable Jacket):: | DIN EN 50265-2-2, VDE 0482-265-2-2, IEC 60332-2-2, CSA FT2 |
| Cable Characteristics:: | Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Exclusion of PVC and silicone; Coldness flexibilty; Free of lacquer wetting disturbing substances |
| RoHS Compliant:: | yes |
| Halogenfree:: | yes |
| Oil Resistance:: | Good chemical and oil resistance |
| Note Derating:: | Notice derating |
| Protection Degree / IP Rating Note:: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Note:: | Do not connect or disconnect under load. |
| 54921: | RST 3U-226/5 M |
Parámetros logísticos
| ECCN: | |
| País de origen: | CZ |
| EAN: | |
| Peso: | 0,16 kg |
| Longitud: | 0,00 m |
| Anchura: | 0,00 m |
| Altura: | 0,00 m |
