KM3701
KM3701 | 1-channel differential pressure measuring terminal -100…+100 hPa (-100…+100 mbar)

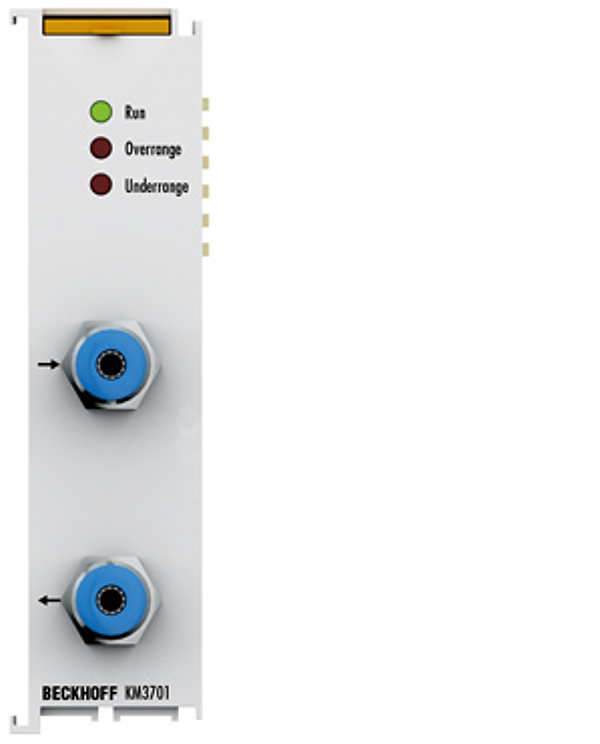

The KM3701 pressure measuring terminal enables direct measurement of pressure differences between two hose connections. The pressure difference is available in the fieldbus as a 16 bit value and can be measured between any points up to an ambient pressure of 10 bar. The status LEDs indicate proper function or errors such as over-range.
Technology: | differential pressure measurement |
Number of inputs: | 1 (differential pressure) |
Measuring error: | 3 % (relative to full scale value) |
Measuring range: | -100…+100 hPa (-100…+100 mbar) |
Max. overload: | 500 hPa (500 mbar) differential, 5,000 hPa (5 bar) to ambient |
Resolution: | 0.1 hPa (0.1 mbar) per digit |
Measuring speed: | 5 ms typ. |
Current consumption power contacts: | – (no power contacts) |
Current consumpt. K-bus: | typ. 15 mA |
Bit width in the process image: | 3 byte input/output |
Medium: | non-aggressive gases |
Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
Relative humidity: | 95 %, no condensation |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos.: | IP 20/variable |
Approvals: | CE, UL |
ECCN: | |
País de origen: | |
EAN: | |
Peso: | 0,00 kg |
Longitud: | 0,00 m |
Anchura: | 0,00 m |
Altura: | 0,00 m |
