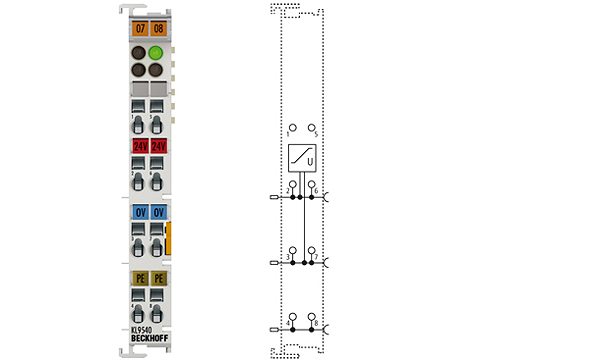

Beckhoff KL9540
KL9540 | System terminal, surge filter field supply
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
The KL9540 system terminal contains an overvoltage filter for the 24 V field supply. The filter protects the Bus Terminal from line-bound surge voltages that can occur due to high-energy disturbances such as switching overvoltages at inductive consumers or lightning strikes at the supply lines. The KL9540 protects the Bus Terminal station from damage in particularly harsh environments. The ship classification organisations require the use in shipbuilding applications and in the onshore/offshore sector.
Parámetros técnicos
| Diagnostics: | – |
| Nominal voltage: | 24 V DC (-15 %/+20 %) |
| Surge filter field supply: | yes |
| Surge filter system supply: | – |
| Rated current field supply: | ≤ 10 A |
| Rated current system supply: | – |
| PE connection: | yes |
| Weight: | approx. 40 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals/markings: | CE, UL, ATEX, GL |
| Ex marking: | II 3 G Ex nA IIC T4 Gc |
