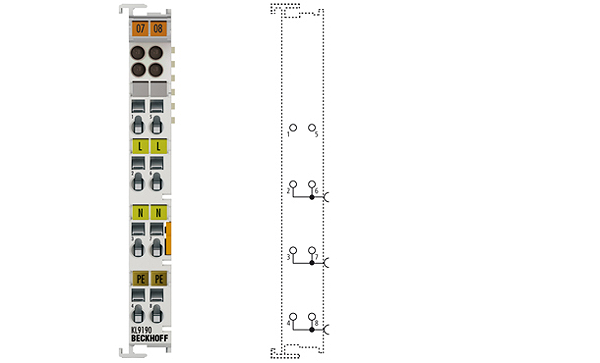

KL9190
KL9190 | Potential supply terminal, any voltage up to 230 V AC
The KL9190 power feed terminal makes it possible to set up various potential groups with any desired voltages up to 230 V AC.
Nominal voltage: | arbitrary |
Current load: | ≤ 10 A |
Integrated fine-wire fuse: | – |
Diagnostics: | – |
Power LED: | – |
Defect LED: | – |
Reported to K-bus: | – |
PE contact: | yes |
Shield connection: | – |
Renewed infeed: | yes |
Connection facility to additional power contact: | 1 |
K-bus, looped through: | yes |
Bit width in the process image: | 0 |
Electrical connection to DIN rail: | – |
Current consumption K-bus: | – |
Electrical isolation: | yes |
Housing width: | 12 mm |
Weight: | approx. 50 g |
Side by side mounting on Bus Terminals with power contact: | yes |
Side by side mounting on Bus Terminals without power contact: | yes |
Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
Pluggable wiring: | for all KSxxxx Bus Terminals |
Approvals/markings: | CE, UL, ATEX, GL |
Ex marking: | II 3 G Ex nA IIC T4 Gc |
ECCN: | |
País de origen: | |
EAN: | |
Peso: | 0,00 kg |
Longitud: | 0,00 m |
Anchura: | 0,00 m |
Altura: | 0,00 m |
