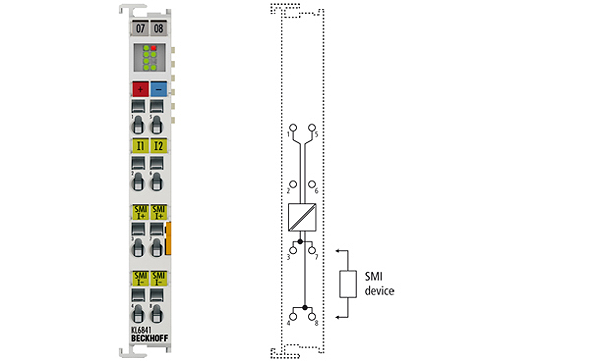

Beckhoff KL6841
KL6841 | SMI master terminal, 230 V AC
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
The KL6841 master terminal connects the Bus Terminal system with the SMI bus system. SMI (Standard Motor Interface) is used for controlling and exact positioning of roller shutter and sun protection device drives. In conjunction with intelligent energy and lighting management the blades can be positioned and moved according to the sun's position. Up to 16 drives can be connected via an SMI master terminal. The KL6841 is used for interfacing of 230 V AC SMI devices.
Parámetros técnicos
| Technology: | SMI |
| Number of channels: | 1 |
| Number of slaves: | 16 |
| Data transfer standard: | SMI |
| Data transfer rates: | 2400 baud |
| Topology: | line topology |
| Cable length: | max. 200 m |
| Current consumption K-bus: | typ. 55 mA |
| Electrical isolation: | 500 V (K-bus/SMI-bus) |
| Bit width in the process image: | input/output: 24 bytes |
| Configuration: | via the Bus Coupler or the controller |
| Input voltage: | 24 V DC (-15 %/+20 %) |
| Insulation voltage: | SMI bus/K-bus: 1,500 V DC, SMI bus/power contacts: 1,500 V AC |
| SMI system: | 230 V AC |
| Special features: | 2 digital inputs for simplified commissioning; TwinCAT library: TwinCAT PLC SMI |
| Weight: | approx. 80 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals: | CE |
