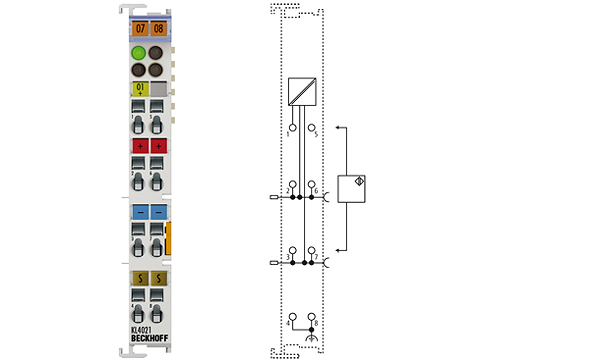

Beckhoff KL4021
KL4021 | 1-channel analog output terminal 4…20 mA
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
The KL4021 analog output terminal generates analog output signals in the range from 4 to 20 mA. The power is supplied to the process level with a resolution of 12 bits and is electrically isolated. Ground potential for the output channels of a Bus Terminal is common with the 24 V DC supply. The output stages are powered by the 24 V supply. The run LEDs give an indication of the data exchange with the Bus Coupler.
Parámetros técnicos
| Technology: | single-ended |
| Number of outputs: | 1 |
| Power supply: | 24 V DC via power contacts (alternative 15 V DC with power supply terminal KL9515) |
| Signal current: | 4…20 mA |
| Load: | < 500 Ω |
| Output error: | < ±0.1 % (relative to end value) |
| Resolution: | 12 bit |
| Conversion time: | ~ 1.5 ms |
| Electrical isolation: | 500 V (K-bus/signal voltage) |
| Current consumption power contacts: | typ. 30 mA + load |
| Current consumption K-bus: | typ. 60 mA |
| Bit width in the process image: | output: 1 x 16 bit data (1 x 8 bit control/status optional) |
| Configuration: | no address or configuration setting |
| Weight: | approx. 80 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals: | CE, UL, Ex, GL |
