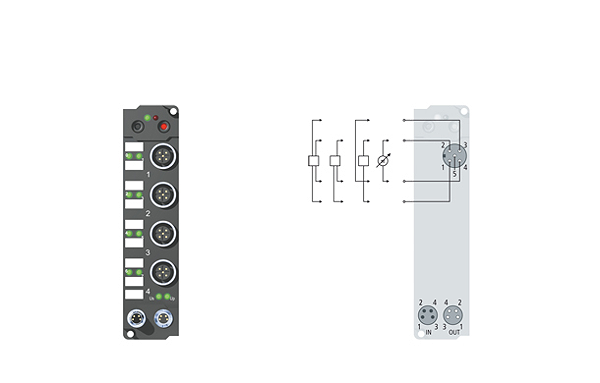

Beckhoff IE3102
IE3102 | 4-channel analog input ±10 V
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
The IE3102 analog input module handles signals in the range from -10 to +10 V. The voltage is digitised to a resolution of 16 bits and is transmitted, electrically isolated, to the higher-level automation device. The four input channels have differential inputs and possess a common, internal ground potential. The applied auxiliary voltage (which can be any value up to 30 V DC) is fed through to supply the sensor. It is thus possible, for instance, to supply a measuring potentiometer with 10 V DC from an external voltage source.
Parámetros técnicos
| Number of inputs: | 4 |
| Input connections: | M12, screw type |
| Signal voltage: | -10/0…+10 V |
| Internal resistance: | > 100 kΩ |
| Common-mode voltage UCM: | 35 V max. |
| Resolution: | 16 bit (for 0…10 V range: resolution 15 bit) |
| Measuring error: | < ±0.3 % (relative to full scale value) |
| Conversion time: | 250 ms, configurable to 5 ms |
| Nominal voltage: | 24 V DC (-15 %/+20 %) |
| Input filter: | configurable |
| Sensor supply: | from load supply voltage UP |
| Current consumption from US (without sensor current): | 55 mA |
| Power supply connection: | feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin |
| Bit width in the process image: | input: 4 x 16 bit data (4 x 8 bit control/status optional) |
| Electrical isolation: | channels/control voltage: 500 V, between the channels: no, control voltage/fieldbus: yes, via IP-Link |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 65/66/67 (conforms to EN 60529)/variable |
| Approvals: | CE, UL |
