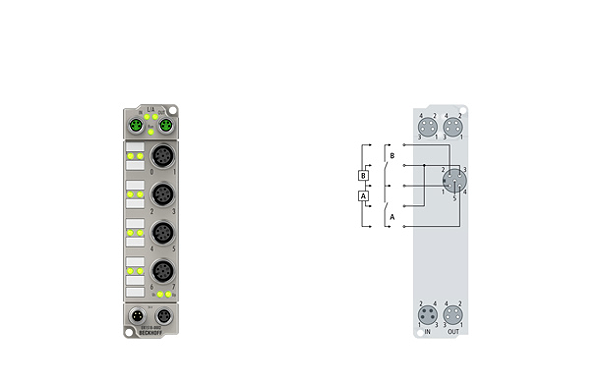

Beckhoff ER1518-0002
ER1518-000x | 2-channel up/down counter 24 V DC, 1 kHz, 32 bit, adjustable input filters 0…100 ms
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
The ER1518 EtherCAT Box with digital inputs acquires binary control signals from the process level and transmits them, in an electrically isolated form, to the controller. The signal state is displayed by light emitting diodes. The signals are connected via M12 screw type connectors. The input filters can be set between 0 and 100 ms via EtherCAT. Inputs 0 and 4 can be used as 32-bit up/down counters.
Parámetros técnicos
| Specification: | EN 61131-2, type 1/3 |
| Number of inputs: | 8, 2 of which can be used as 32 bit up/down counters |
| Input connections: | M12, screw type |
| Counting frequency: | max. 1 kHz |
| Protocol: | EtherCAT |
| Bus interface: | 2 x M8 socket, shielded, screw type |
| Nominal input voltage: | 24 V DC (-15 %/+20 %) |
| Input filter: | adjustable 0…100 ms |
| “0” signal voltage: | -3…+5 V (EN 61131-2, type 3) |
| “1” signal voltage: | 11…30 V (EN 61131-2, type 3) |
| Input current: | typ. 3 mA (EN 61131-2, type 3) |
| Distributed clocks: | yes |
| Sensor supply: | from control voltage, max. 0.5 A per 4 sensors, short-circuit proof |
| Power supply connection: | feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin |
| Bit width in the process image: | input/output: 8 bit data, 8 bit diagnostics, 48 bit counter input, 48 bit counter output |
| Current consumption from US (without sensor current): | 120 mA |
| Electrical isolation: | 500 V |
| Special features: | adjustable filters |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings: | CE, UL |
