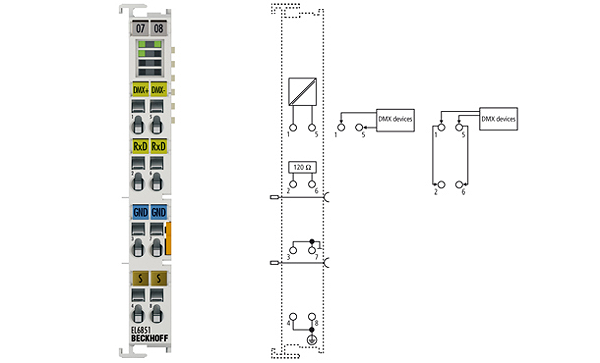

Beckhoff EL6851
EL6851 | DMX master/slave
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
The EL6851 EtherCAT Terminal is a DMX master terminal and enables connection of up to 32 devices without repeater. The DMX master terminal can send up to 512 bytes of data (this can be set via the terminal). At 250 kbit/s a maximum data rate of 44 kHz is therefore possible. The RS485 interface in the EL6851 is electrically isolated and guarantees high interference immunity.
Parámetros técnicos
| Technology: | DMX master terminal |
| Data transfer channels: | RS485 physics/half duplex |
| Data transfer rates: | 250 kbit, one start bit, two stop bits |
| Interfaces: | RS485, termination resistor can be switched, half duplex |
| Bus device: | max. 32 without repeater |
| Line impedance: | 120 Ω |
| Power supply: | via the E-bus |
| Distributed clocks: | – |
| Electrical isolation: | 500 V (E-bus/signal voltage) |
| Protocol: | DMX512 |
| Bit width in the process image: | variable |
| Configuration: | no address setting, configuration via PLC |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 130 mA |
| Special features: | supports RDM protocol, library available; electrically isolated |
| Weight: | approx. 55 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
