Beckhoff EL3174-0002

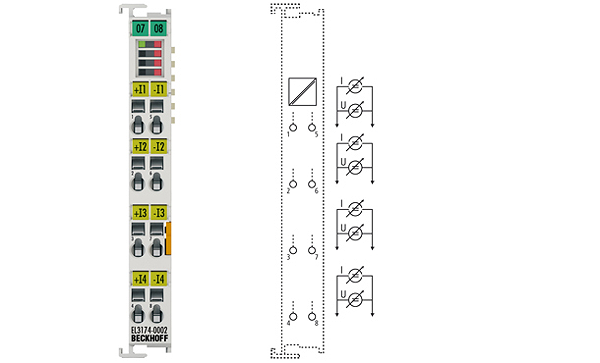

EL3174-0002 | 4-channel analog input, -10/0…+10 V, -20/0/+4…+20 mA, electrically isolated, 16 bit
Descripción
The EL3174-0002 analog input terminal has four individually parameterisable inputs. Signals in the range from -10/0 to +10 V or -20/0/+4 to +20 mA can be processed via each channel. Each channel should be set by the controller to U or I mode via CoE. The input voltage or current is digitised with a resolution of 16 bits, and is transmitted, electrically isolated, to the higher-level automation device. With a technical measuring range of ±107 % of the nominal range, the terminal also supports commissioning with sensor values in the limit range and diagnostics according to NAMUR NE43. The four differential inputs are electrically isolated against each other and against the fieldbus (2,500 V DC).
Parámetros técnicos
| Number of inputs: | 4 |
| Power supply: | via the E-bus |
| Technology: | differential input, channels electrically isolated |
| Oversampling factor: | – |
| Distributed clocks: | yes |
| Distributed clock precision: | << 1 µs |
| Internal resistance: | > 200 kΩ | typ. 85 Ω |
| Input filter limit frequency: | 5 kHz |
| Conversion time: | minimum 150 µs |
| Measuring range, nominal: | -10/0…+10 V | -20/0/+4…+20 mA |
| Measuring range, technical: | -10.73…+10.73 V | -21.47…+21.47 mA |
| Resolution: | 16 bit (incl. sign) |
| Measuring error: | < ±0.2 % (at 25 °C ±5 °C, or else < ±0.3 %, relative to full scale value) |
| Electrical isolation: | 2500 V functional isolation (test voltage channel/channel and channel/fieldbus, production test) |
| Current consumption power contacts: | – |
| Current consumption E-bus: | typ. 150 mA |
| Bit width in the process image: | inputs: 16 byte |
| Configuration: | no address or configuration setting |
| Special features: | U/I parameterisable, Extended Range, standard and compact process image, activatable FIR/IIR filters |
| Weight: | approx. 65 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals/markings: | CE, UL |
