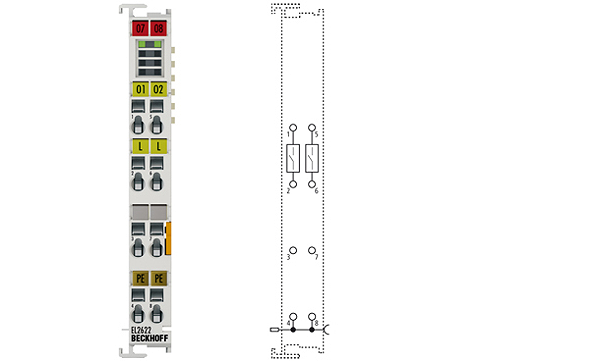

Beckhoff EL2622
EL2622 | 2-channel relay output terminal 230 V AC, 5 A, potential-free make contacts, no power contacts
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
The EL2622 output terminal has two relays each of which has a single contact and can be generally used for switching devices requiring mains power. The EtherCAT Terminal indicates its signal state by means of light emitting diodes. The EL2622 has potential-free contacts. The power contacts are not looped through.
Parámetros técnicos
| Connection technology: | relay output |
| Number of outputs: | 2 x make contacts |
| Nominal voltage: | 230 V AC/30 V DC |
| Load type: | ohmic, inductive, lamp load |
| Distributed clocks: | – |
| Ohmic switching current: | 5 A AC/DC per channel |
| Inductive switching current: | 2 A AC/DC per channel |
| Minimum permitted load: | 10 mA at 5 V DC |
| Lamp test, electronic ballast: | 4 x 58 W |
| Current consumption E-bus: | typ. 170 mA |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Current consumption power contacts: | – |
| Bit width in the process image: | 2 outputs |
| Operating cycles mech. (min.): | 2 x 107 |
| Operating cycles electr. (min.): | 1 x 105 (5 A/30 V DC) |
| Configuration: | no address or configuration setting |
| Special features: | – |
| Weight: | approx. 50 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all ESxxxx terminals |
| Approvals: | CE, UL |
