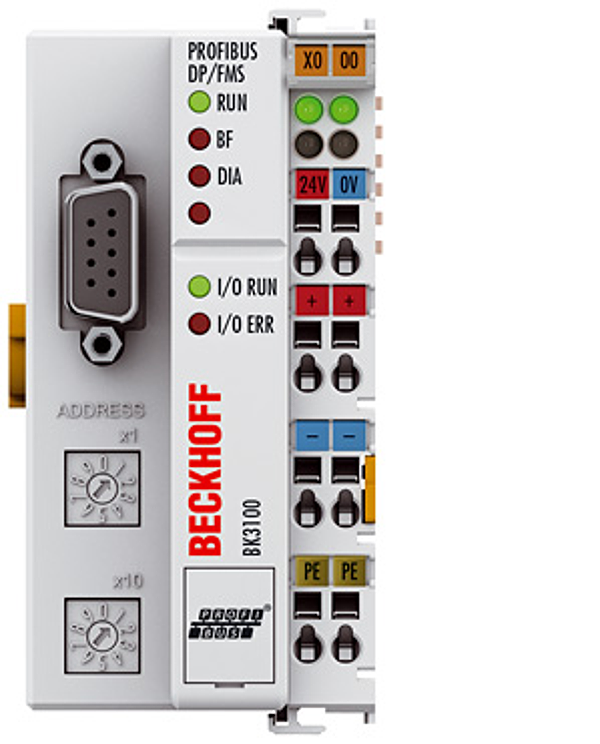

Beckhoff BK3100
BK3100 | PROFIBUS Bus Coupler
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
The BK3100 Bus Coupler connects the PROFIBUS system to the electronic terminal blocks, which can be extended in modular fashion. One unit consists of the Bus Coupler, any number of up to 64 terminals and one end terminal.
Parámetros técnicos
| Number of I/O stations: | 100 with repeater |
| Number of I/O points: | approx. 6,000, depending on the master |
| Data transfer medium: | shielded copper cable, 2 x 0.25 mm² |
| Max. cable length 1,200 m: | 1,200 m 1,000 m 400 m 200 m 100 m 1,000 m |
| 1,200 m: | 1,000 m |
| Data transfer rates 9.6/19.2/ 93.75 kbaud: | 9.6/19.2/ 93.75 kbaud 187.5 kbaud 500 kbaud 1,500 kbaud …3, 6, 12 Mbaud 187.5 kbaud |
| 9.6/19.2/ 93.75 kbaud: | 187.5 kbaud |
