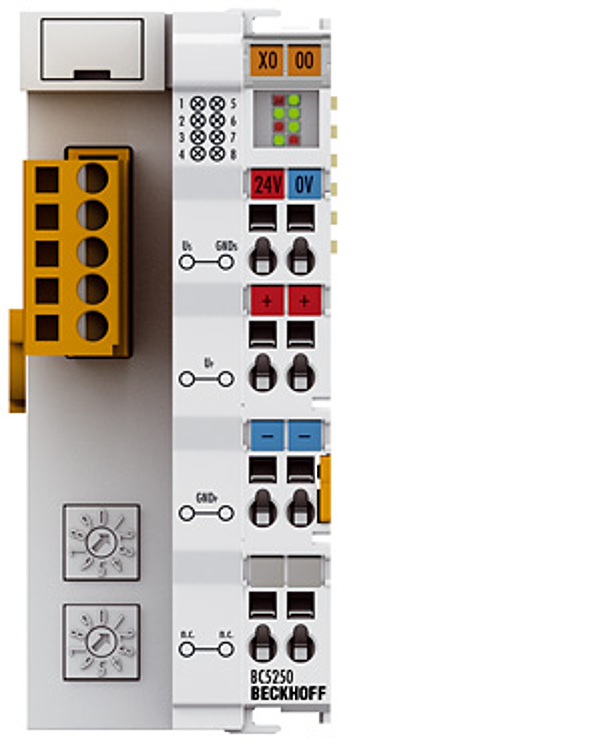

Beckhoff BC5250
BC5250 | DeviceNet "Compact" Bus Terminal Controller
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
The Bus Terminal Controllers are Bus Couplers with integrated PLC functionality. The “Compact” BC5250 Bus Terminal Controller for DeviceNet extends the Beckhoff small controller series by a cost-optimised version in a compact housing. The DeviceNet Controller offers automatic baud rate detection up to 500 kbaud and two address selection switches for address assignment.
Parámetros técnicos
| Programming: | TwinCAT (via programming interface or fieldbus) |
| Program memory: | 48 kbytes |
| Data memory: | 32 kbytes |
| Remanent data: | 2 kbytes |
| Runtime system: | 1 PLC task |
| PLC cycle time: | approx. 3 ms for 1,000 instructions (without I/O cycle, K-bus) |
| Programming languages: | IEC 61131-3 (IL, LD, FBD, SFC, ST) |
| Online change: | yes |
